*** DISCONTINUED ***

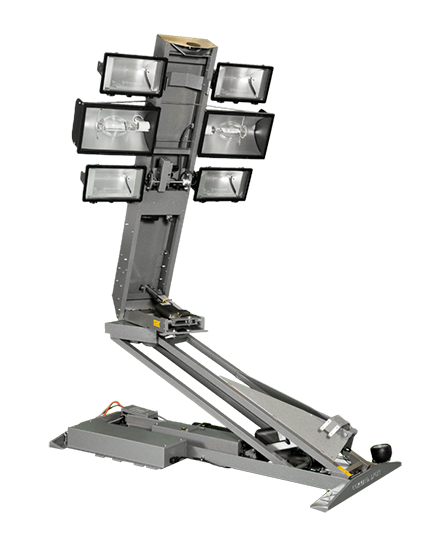

The CL Series are Command Light’s largest units with a reach of up to 11 feet from its base.  These units are designed for large apparatuses and are manufactured using aircraft grade aluminum alloy to reduce weight while adding strength.

Call us at 800-797-7974 for questions on this model or for suggested alternate towers.

1
2
3
4
1

CL Series towers use two actuators to not only raise the lights, but also tilt and rotate them creating an endless number of positions for users to direct light with precise accuracy

2

Optional Backlighting rotate bottom row of light 180° in order to light both sides of scene.  Backlighting is not available on units with 4 metal halide lights or units with 2 metal halide lights and a top mounted strobe.

3

Optional Strobe comes in Green, Red, Amber, or Blue – helps warn traffic and bystanders keeping personnel safe on the scene.  Strobes are not available on units with 4 metal halide lights or units with 2 metal halide lights and backlighting option.

4

Metal Halide lighting options are available as (2) centered mounted lights with either Quartz Halogen or LED lighting on top and bottom.  They can also be arranged with (4) Metal Halide lights along side (2) Quartz Halogen.

Highlights
  • full deployment in under 15 seconds
  • continuous 360° rotation
  • 100% electric (no air or hydraulics required)
  • all-weather
  • ability to overhang side of vehicles
  • one touch auto-park
  • umbilical cord with 15 ft cord
  • maintenance free
  • 5 year warranty

Light Options

Most popular lighting options:

  • (2) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (4) Hubble Quartz – 1500w
  • (2) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (4) FRC Spectra LEDs – 220w

See table below for full specs on these models

Other lighting options available include:

  • (2) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (4) FRC Optimum Quartz – 1500w
  • (4) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (2) Hubble Quartz – 1500w
  • (4) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (2) FRC Optimum Quartz – 1500w
  • (2) Akron Brass Extenda-Lite Metal Halide – 1000w paired with (4) Whelen PFP2 LEDs – 150w

For full specs on these models, please email info@commandlight.com

CL Series lights provide more efficient scene lighting than ever before.  The CL Series towers can be put into thousands of different positions with the unique, patented (US Patent #5203621) movement of different sections of the tower.  These positions are deployed within seconds with the press of a button, including Command Light’s unique “street light position.”  When lights have the ability to overhang over the side of a vehicle, it prevents shadows near the side of a vehicle keeping personnel safer.

Metal Halide lighting options are available as (2) centered mounted lights with either Quartz Halogen or LED lighting on top and bottom.  They can also be arranged with (4) Metal Halide lights along side (2) Quartz Halogen.

The towers can rotate 360° and can be tilted, lowered, and raised with ease.  This kind of control makes it possible to keep the lights closer to the scene, as oppose to very high in the air and still light a large scene.  This is an advantage because the higher a light gets in the air, the less intense a light at scene level.

Emergency and utility scenes are multi-dimensional.  With Command Light’s backlighting option, it is possible to light both sides of the scene by rotating the bottom lamp heads 180°.

The CL Series is completely electric and maintenance free.  Operation is done at ground level with a remote control with a 15 ft umbilical cord attached to the control panel located on apparatus.  Full deployment of the CL Series lights is complete in under 15 seconds saving time when seconds can be highly valuable.  Stowing the light is effortless with a one-touch auto-park feature.

The CL Series come with an industry-leading, 5-year warranty.  They can be used in all weather (not affected by ice, high wind, or blowing dust), are NFPA 1901 compliant and have been tested to winds up to 90 MPH.

Models
ModelLightingPower RequirementsTotal Output
(2) Akron Brass Metal Halide – 1000 W
(4) Hubbell Quartzliter – 1500 W
230V AC
8000 Watts
353,200 lumens
(2) Akron Brass Metal Halide – 1000 W
(4) FRC Spectra LED – 220 W
230V AC
3000 Watts
290,000 lumens
