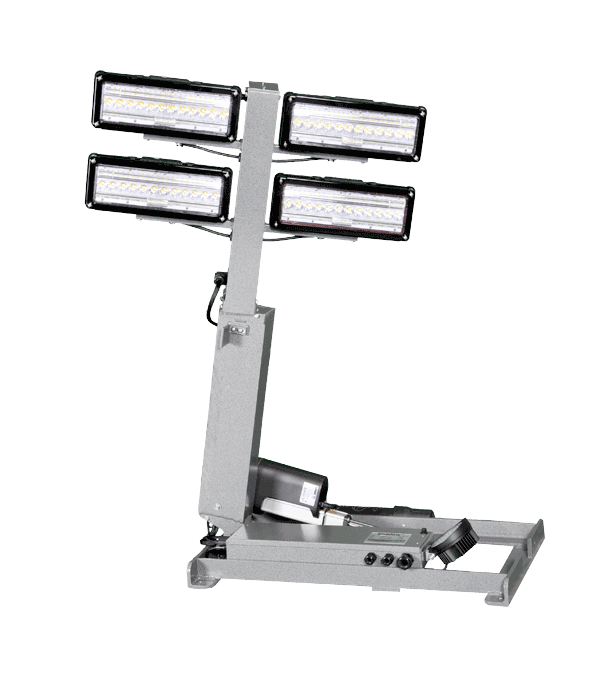

The Shadow Series are Command Light’s most compact units, for when space is needed.  These units have a reach of over 4 feet from its base, weigh approximately 65 lbs, and are still manufactured using aircraft grade aluminum alloy to add strength.

1
2
3
4
Highlights
  • full deployment in under 15 seconds
  • 355° rotation
  • 100% electric (no air or hydraulics required)
  • all-weather
  • ability to overhang side of vehicles
  • auto-park
  • umbilical cord with 15 ft cord
  • maintenance free
  • 5 year warranty

Light Options for AC Power

Most popular lighting options:

  • FRC Spectra – 220w
  • Whelen PFP2 – 150w

See table below for full specs on these models

Other lighting options available include:

  • FRC Spectra Max – 335w
  • Whelen PFP4 – 300w
  • Whelen PCP3 – 150w
  • Whelen PSP1 – 75w
  • Akron Brass SceneStars – 220w

For full specs on these models, please email info@commandlight.com

Light Options for DC Power

Most popular lighting options:

  • FRC Spectra – 220w
  • FRC Evolution – 160w
  • Whelen PFP2 – 150w

See table below for full specs on these models

Other lighting options available include:

  • FRC Spectra Max – 230w
  • Whelen PCP3 – 150w
  • Whelen PSP1 – 75w
  • Akron Brass SceneStars – 220w
  • Akron Brass SceneStars – 150w

For full specs on these models, please email info@commandlight.com

The Shadow RT Series provides departments with an extremely efficient and reliable lighting solution while staying compact to fit on practically any apparatus.  At only 65 lbs and a standard length of on 48 inches, these units can fit on vehicles as small as pick-up trucks, SUV’s and vans.

The trees can rotate 355° and can be tilted, lowered, and raised with ease and even overhang the vehicle in Command Light’s unique “street light” position.  This kind of control makes it possible to keep the lights closer to the scene, as oppose to very high in the air and still light a large scene.  This is an advantage because the higher a light gets in the air, the less intense a light is at scene level.

Emergency and utility scenes are multi-dimensional.  With Command Light’s backlighting option, it is possible to light both sides of the scene by rotating the bottom lamp heads 180°.

The Shadow RT Series is completely electric and maintenance free.  Operation is done at ground level with a remote control with a 15 ft umbilical cord attached to the control panel located on apparatus.  Full deployment of the Shadow RT Series lights is complete in under 15 seconds saving time when seconds can be highly valuable.  Stowing the light is effortless with a one-touch auto-park feature.

The Shadow RT Series come with an industry-leading, 5-year warranty.  They can be used in all weather (not affected by ice, high wind, or blowing dust), are NFPA 1901 compliant and have been tested to winds up to 90 MPH.

AC Power
ModelLightingPower RequirementsTotal Output
(4) FRC Spectra – 220 W12V DC + 115V AC
1000 Watts
80,000 lumens
(4) Whelen PFP2 – 150 W12V DC + 115V AC
1000 Watts
60,000 lumens
(2) FRC Spectra – 220 W12V DC + 115V AC
500 Watts
40,000 lumens
(2) Whelen PFP2 – 150 W12V DC + 115V AC
500 Watts
30,000 lumens
DC Power
ModelLightingPower RequirementsTotal Output
(4) FRC Spectra – 220 W12 or 24V DC
1000 W – 84 amps
80,000 lumens
(4) Whelen PFP2 – 150 W12 or 24V DC
700 W – 60 amps
64,000 lumens
(4) FRC Evolution – 160 W12 or 24V DC
700 W – 60 amps
60,000 lumens
(2) FRC Spectra – 220 W12 or 24V DC
500 W – 42 amps
40,000 lumens
(2) Whelen PFP2 – 150 W12 or 24V DC
350 W – 30 amps
32,000 lumens
(2) FRC Evolution – 160 W12 or 24V DC
350 W – 30 amps
30,000 lumens
