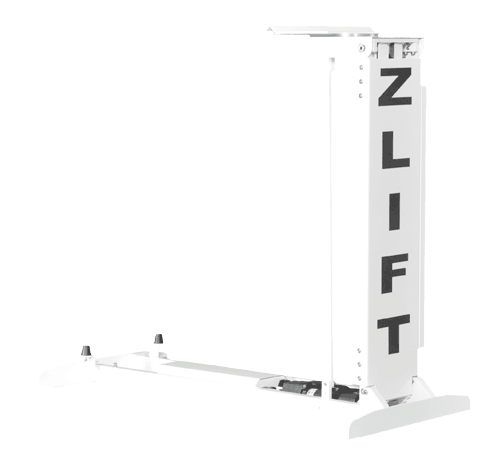

Command Light’s Z-Lift improved visibility by elevating your vehicle’s warning lights and traffic arrows above the roofline of approaching traffic.

1
2
3
1

Lifts light bar 40″ above roofline for advanced warning to oncoming traffic.

2

Rotates 45° left of right to catch traffic head on.

3

Mounts on Crown Victoria, Tahoe, or Impala

Highlights
  • raises 40″ in 10 seconds
  • rotates 0-90° up and down
  • rotates up to 90° left and right
  • umbilical remote
  • auto-park and auto deploy feature
Technical Specs – Z375

HxWxD (Nested):     5.25″ x 22″ x 47″   –   135 mm x 560 mm x 1195 mm

HxWxD (Fully Upright):     43″ x 22″ x 45″   –   1095 mm x 560 mm x 1145 mm

Weight:     62 lbs   –   28 kg

Power Requirements:     12V DC   –   200w    –   16.5 amps

Elevation Time:    10 sec

Rotation:     90° clockwise or counter clockwise

Mounting::     Crown Victoria – Tahoe – Impala

Ruggedly constructed of aluminum and stainless steel alloys, the Command Light Z-Lift is an investment in safety that will provide many years of service.  A flexible mounting system provides the freedom to select light bars that conform to department requirements.

The unit rotates up to 90°, 40″ into the air and can also rotate left and right 45° to give maximum effectiveness.
