TRAFFIC FLOW BOARDS

LED TRAFFIC ADVISOR LIGHT BARS AND ARROW STICKS






INCREASE YOUR APPARATUS’ VISIBILITY WITH A TRAFFIC FLOW BOARD

With rotational capabilities and multiple arrow patterns, Command Light’s Traffic Flow Boards significantly improve scene visibility and responder safety. Each model comes with standard rotation, giving crews the ability to position these LED traffic advisor light bars and arrow sticks toward oncoming motorists to maximize effectiveness during blocking scenarios.


TRAFFIC PATTERNS

MODELS SPECIFICATIONS

LIGHT BAR LIFT


HOW TO CHOOSE A TRAFFIC FLOW BOARDS


Available in six different models (based on deployment and traffic pattern features), these units conserve space when stowed, while the versatile mounting system gives crews the ability to select various boards to conform to department standards.


STEP 1:  SELECT YOUR FLOW BOARD PROFILE

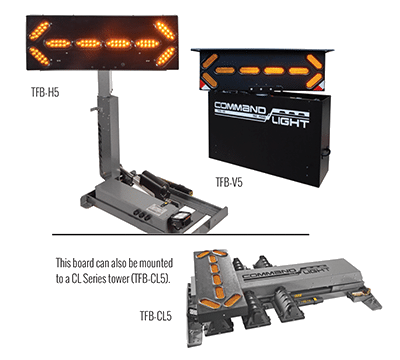

FOLD-DOWN DESIGN (H MODELS)

The H Model features a fold-down design that mounts to the apparatus to create a low-profile. Once deployed, the flow board can be rotated toward oncoming traffic.



VERTICAL POP-UP (V MODELS)

The V Model’s patented motion (US Patent #8638209) creates the lowest possible profile with this vertical pop-up design that recesses into the apparatus.



STEP 2: SELECT YOUR TRAFFIC PATTERN



7 SERIES LED TRAFFIC ADVISOR ARROW STICK

The 7 Series offers the greatest variety of traffic patterns in this LED traffic advisor arrow stick and can be deployed via the fold-down design or the vertical pop-up design



5 SERIES LED TRAFFIC ADVISOR ARROW STICK

The 5 Series offers essential traffic patterns in a lighter design. The LED arrow stick can be deployed via the fold-down design or the vertical pop-up design.



3 SERIES LED TRAFFIC ADVISOR LIGHT BAR

The 3 Series features an LED traffic advisor light bar that provides a pulsing movement to guide traffic. The light bar mounts to the top of a SL Series traffic tower.




EnHANCE YOUR COMMAND LIGHT TOWER WITH A TRAFFIC ADVISOR

Command Light's multitasking TFB-CL5 can light up a scence while directing traffic, increasing your crews visibility and saftey at the touch of a button.


TFB-CL5 SPECS

CLICK THE CHART'S MODEL NUMBER FOR THAT UNIT'S INDIVIDUAL SPEC SHEET

TRAFFIC ADVISORS

DCMovementTRAFFIC PATTERNPOWER REQUIREMENTSHXWXD (NESTED)HXWXD (UPRIGHT)Weight
TFB-V7Vertical pop-up, recessed in apparatusGreatest variety of traffic patterns12V DC - 7 amps43" x 64" x 13"
1,092 mm x 1,626 mm x 330 mm
75" x 64" x 13"
1,905 mm x 1,626 mm x 330 mm
220 lbs
100 kg
TFB-H7Fold-down designGreatest variety of traffic patterns12V DC - 5 amps16" x 60" x 46"
406 mm x 1,524 mm x 1,168 mm
44" x 60" x 66"
1,118 mm x 1,524 mm x 1,676 mm
150 lbs
68 kg
TFB-V5Vertical pop-up, recessed in apparatusEssential traffic patterns12V DC - 5 amps28" x 44" x 13"
711 mm x 1,118 mm x 330 mm
43" x 44" x 13"
1,092 mm x 1,118 mm x 330 mm
150 lbs
68 kg
TFB-H5Fold-down designEssential traffic patterns12V DC - 5 amps8" x 48" x 40"
203 mm x 1,219 mm x 1,106 mm
52" x 70" x 40"
1,321 mm x 1,778 mm x 1,016 mm
80 lbs
36 kg
TFB-CL5Fold-down design, mounted to a CL Series towerEssential traffic patterns12V DC - 5 amps
+ tower requirements
Variable based on tower selectionVariable based on tower selection28 lbs
+ tower
TFB-SL3Fold-down design, mounted to a Shadow Series towerDirectional light bar12V DC - 5 amps
+ tower requirements
Variable based on tower selectionVariable based on tower selection14 lbs
+ tower
