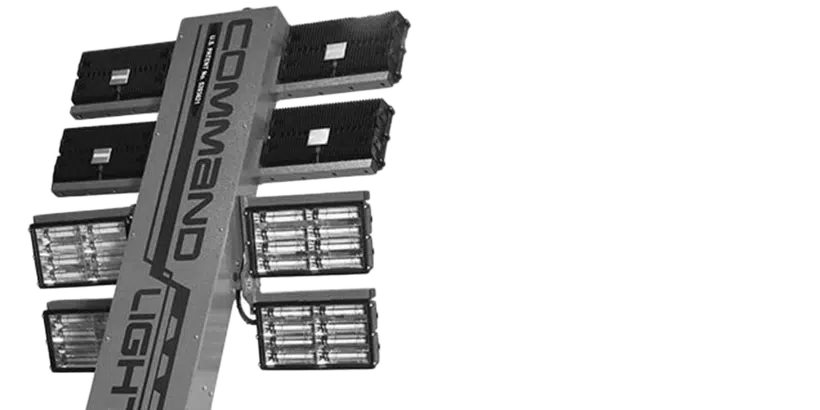

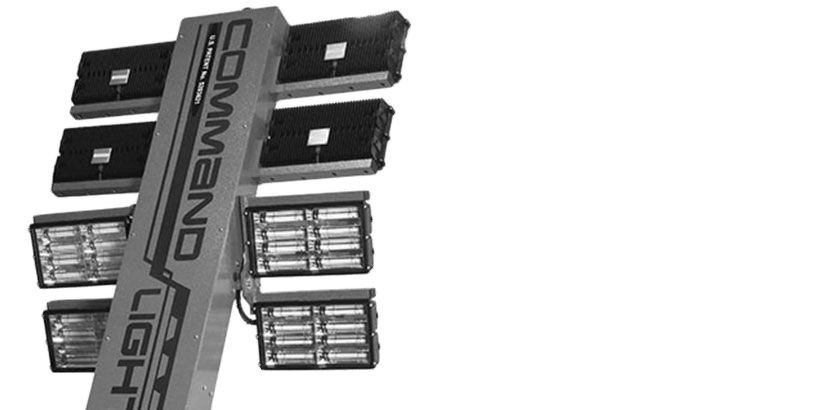

THE OCTOLIGHT

THE INDUSTRY’S MOST POWERFUL LIGHT TOWER



WHO KNEW EIGHT HEADS COULD LOOK SO TOUGH?

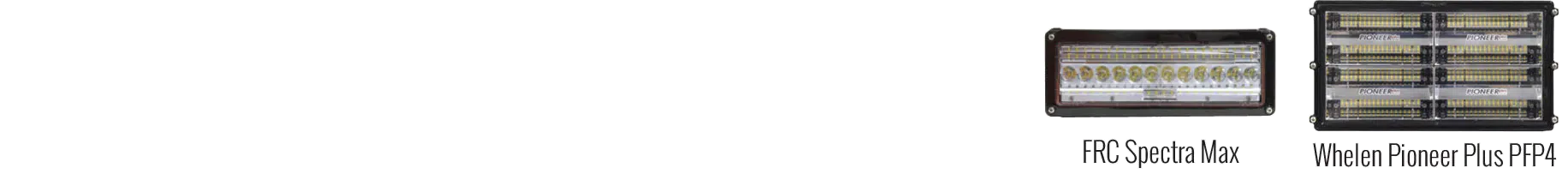

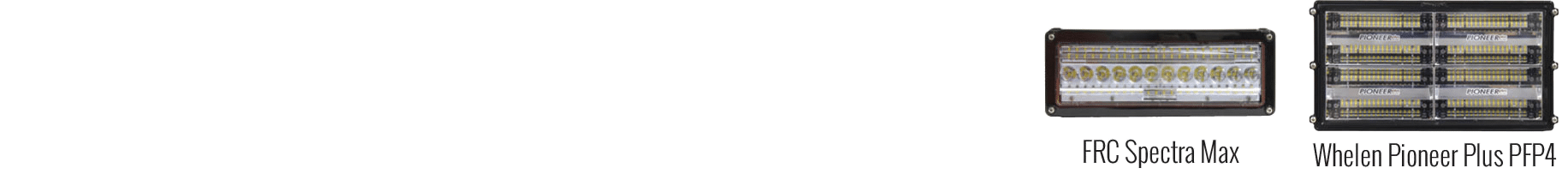

Meet the industry’s most powerful light tower, the CL Series Octolight eight-head tower, available with FRC or Whelen fixtures. The Whelen Pioneer Plus PFP4 fixtures provide a whopping 327,072 luminous output, while the FRC Spectra Max heads deliver combo optics with top-and-bottom flood lights, plus middle-spot LEDs for long-distance illumination.



LEDs

ACLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
CL802A-CHFireTech Helios
60w
115V or 230V AC
780w
14,000
lumens
112,000
lumens
12" x 74" x 38"
305 mm x 1,880 mm x 965 mm
131" x 79 " x 38"
3,330 mm x 2,010 mm x 1,095 mm
325 lbs
147 kg
CL802A-FXFRC Spectra Max
335w
115V or 230V AC
2,980w
28,000
lumens
224,000
lumens
12" x 74" x 43"
305 mm x 1,880 mm x 1,095 mm
131" x 79 " x 43"
3,330 mm x 2,010 mm x 1,095 mm
325 lbs
147 kg
CL802A-W4Whelen Pioneer Plus PFP4
300w
115V or 230V AC
2,700w
40,884
lumens
327,072
lumens
12" x 74" x 43"
305 mm x 1,880 mm x 1,095 mm
131" x 79 " x 43"
3,330 mm x 2,010 mm x 1,095 mm
325 lbs
147 kg
