the only tripod work light that lets you choose ...
YOUR POWER SOURCE + LEDS DESIGNED FOR THE FIREGROUND
Looking for a mobile light source? Command Light continues to elevate scene lighting, this time revolutionizing the tripod lighting market with the introduction of the all-NEW Trident Tripod Light, the only tripod of its kind that lets departments choose their power source, plus their favorite firefighter LED. Pair AC Power, Truck 12V DC or one of four different non-proprietary battery options with Akron Revels, FRC Spectras or Radiant Command, FireTech Helios, Whelen PioneerPlus, Feniex Arrow Stick or a Federal Message Bar.
THE ONLY TRIPOD THAT LETS YOU CHOOSE ...
Available Power Sources
choose your power source and led fixture
Available LED FIXTURES
light up all the sides that matter
DC-POWERED TRIPODS
Akron Revel SL
Akron Revel XL
FireTech
Helios
FireTech
Guardian Elite
FRC Radiant
Command
FRC Mini
Spectra
FRC Spectra
Whelen Pioneer
Plus™ PCH1
Whelen Pioneer
Plus™ PFP2
Whelen Pioneer
Plus™ PSP1
| DC | Lighting | Power Req. | Weight* | Total Output | ESTIMATED BATTERY RUN TIME IN MINUTES ** | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CHOOSE YOUR FAVORITE FIREGROUND LED FIXTURE | -BD 9Ah | -BD 12Ah | -BD 15Ah | Makita XGT 4Ah | Makita XGT 5Ah | Makita XGT 8Ah | Milwaukee RedLithium 3Ah | Milwaukee RedLithium 5Ah | HURST® EWXT / E3™ 5Ah | HURST® EWXT / E3™ 9Ah |
||||
| TXXD-AR-BX | Akron Revel SL x 1**** | 110W | 25 lbs 11 kg | 14,000 lumens | 85 min. | 110 min. | 132 min. | 75 min. | 93 min. | 135 min. | 64 min. | 102 min. | 58 min. | 88 min. |
| TXXD-AX-BX | Akron Revel XL x 1**** | 220W | 35 lbs 16 kg | 28,000 lumens | 42 min. | 55 min. | 66 min. | 37 min. | 46 min. | 69 min. | 32 min. | 51 min. | 29 min. | 44 min. |
| TXXD-HE-BX | FireTech Guardian Elite | 120W | 30 lbs 13 kg | 20,500 lumens | 86 min. | 114 min. | 135 min. | 76 min. | 92 min. | 136 min. | 68 min. | 107 min. | X | X |
| TXXD-CH-BX | FireTech Helios x 1 | 60W | 30 lbs 13 kg | 14,000 lumens | 135 min. | 175 min. | 210 min. | 94 min. | 150 min. | 220 min. | 96 min. | 153 min. | X | X |
| TXXD-FN-BX | FRC Mini Spectra x 1 | 130W | 35 lbs 16 kg | 14,000 lumens | 79 min. | 105 min. | 126 min. | 70 min. | 85 min. | 125 min. | 62 min. | 99 min. | X | X |
| TXXD-FR-BX | FRC Radiant Command x 1 | 120W | 35 lbs 16 kg | 17,000 lumens | 86 min. | 114 min. | 135 min. | 76 min. | 92 min. | 132 min. | 68 min. | 107 min. | X | X |
| TXXD-FS-BX | FRC Spectra x 1 | 220W | 30 lbs 13 kg | 20,000 lumens | 49 min. | 64 min. | 75 min. | 40 min. | 50 min. | 74 min. | 34 min. | 54 min. | X | X |
| TXXD-W1-BX | Whelen PCH1 x 1 | 75W | 25 lbs 11 kg | 10,130 lumens | 145 min. | 192 min. | 225 min. | 130 min. | 160 min. | 235 min. | 105 min. | 172 min. | X | X |
| TXXD-W2-BX | Whelen PFH2 x 1 | 150W | 30 lbs 13 kg | 20,261 lumens | 74 min. | 96 min. | 112 min. | 65 min. | 81 min. | 122 min. | 54 min. | 86 min. | X | X |
| TXXD-LB-BX | Feniex Light Bar*** | 60W Max | 35 lbs 16 kg | Arrow patterns and floodlight | 150 min. | 200 min. | 235 min. | 120 min. | 150 min. | 220 min. | 100 min. | 165 min. | 165 min. | 300 min. |

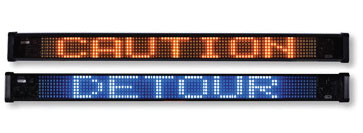

| TXXD-FBA-BX | Amber Federal Message Bar | 90W Max | 35 lbs 16 kg | Digital message in amber | 100 min. | 133 min. | 155 min. | 80 min. | 100 min. | 145 min. | 67 min. | 110 min. | 110 min. | 200 min. |
| TXXD-FBB-BX | Blue Federal Message Bar | 90W Max | 35 lbs 16 kg | Digital message in blue | 100 min. | 133 min. | 155 min. | 80 min. | 100 min. | 145 min. | 67 min. | 110 min. | 110 min. | 200 min. |
BX = DC POWER SOURCE OPTIONS
Replace BX with battery designator and battery choice from the power option chart below:
TXX = TRIPOD HEIGHT
T40 = 40" Tripod or T50 = 50" Tripod
* Weights listed with no options. Add 5 lbs. (2.3 kg) to 50-inch tripod models.
** Reported run times based on fully charged batteries at 70° F; temperature and battery condition can impact tripod performance. Light blinks three times to warn of low-battery conditions.
*** Light/message board run times based on floodlight pattern. Multiply minutes by 2 for average arrow patterns.
**** HURST-powered tripods are only available with Akron Revel fixtures or light/message boards.
| DC POWER OPTIONS | DESCRIPTION |
|---|---|
| DELETE BX* | No Battery Capability, 12V DC-Powered Tripod ONLY |
| BD | Battery Option - -BD Ready |
| BD-09 | -BD 9Ah Battery and Fast Charger |
| BD-12 | -BD 12Ah Battery and Fast Charger |
| BD-15 | -BD 15Ah Battery and Fast Charger |
| BK | Battery Option - Makita XGT Ready |
| BK-04 | Battery Option - Makita XGT 4Ah Battery and Charger |
| BK-05 | Battery Option - Makita XGT 5Ah Battery and Charger |
| BK-08 | Battery Option - Makita XGT 8Ah Battery and Charger |
| BW or BL | Battery Option - Milwaukee Ready*** |
| BH | Battery Option — HURST EWXT / E3 Ready**** |
| SP** | 115V or 220V AC Shore Power Option - 15A Plug |
| TP | 12V DC Truck Power Option |
| MB | Truck Mounting Brackets with Quick Disconnect |
* Must pick 1 Battery Option or Truck Power Option.
** Shore Power only available in addition to a Battery Option.
*** For Milwaukee M28 batteries or chargers, please see your Genesis, TNT or Weber dealer.
**** HURST®, EWXT™/E3™ and Jaws of Life® are trademarks of HURST Jaws Of Life, Inc. HURST batteries are sold exclusively through the HURST dealer network. The HURST models are only available with Akron LEDs.
NOTE: -BD models are NOT compatible with DeWalt POWERSTACK™ batteries.
DC BUNDLE OPTIONS
| DC BUNDLES | Model | Description |
|---|---|---|
| POWER BUNDLES | TXXD-FS-BD-12-SP | 40" or 50" Tripod, 220W FRC Spectra LED x 1, DeWalt 12Ah Battery + Charger, 115V or 220V AC Shore Power |
| TXXD-FS-BK-05-SP | 40" or 50" Tripod, 220W FRC Spectra LED x 1, Makita 5Ah Battery + Charger, 115V or 220V AC Shore Power | |
| BALANCED BUNDLES | TXXD-W2-BD-12-SP | 40" or 50" Tripod, 150W Whelen PFH2 LED x 1, DeWalt 12Ah Battery and Charger, 115V or 220V AC Shore Power |
| TXXD-W2-BK-05-SP | 40" or 50" Tripod, 150W Whelen PFH2 LED x 1, Makita 5Ah Battery + Charger, 115V or 220V AC Shore Power | |
| RUN-TIME BUNDLES | TXXD-CH-BD-12-SP | 40" or 50" Tripod, 60W FireTech Helios LED x 1, DeWalt 12Ah Battery + Charger, 115V or 220V AC Shore Power |
| TXXD-CH-BK-05-SP | 40" or 50" Tripod, 60W FireTech Helios LED x 1, Makita 5Ah Battery + Charger, 115V or 220V AC Shore Power | |
| VALUE BUNDLES | TXXD-AR-BD-09-SP | 40" or 50" Tripod, 110W Akron Revel SL LED x 1, DeWalt 9Ah Battery + Charger, 115V or 220V AC Shore Power |
| TXXD-AR-BK-04-SP | 40" or 50" Tripod, 110W Akron Revel SL LED x 1, Makita 4Ah Battery + Charger, 115V or 220V AC Shore Power |

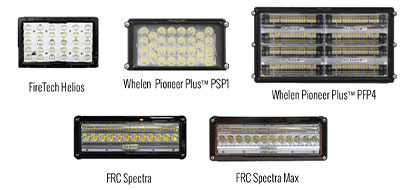

AC-POWERED TRIPODS
LEDS
FireTech Helios
FRC Spectra
FRC Spectra Max
Whelen Pioneer
Plus™ PSP1
Whelen Pioneer Plus™ PFP4
| AC | Lighting | Power Requirements | WT.* | Total Output |
|---|---|---|---|---|
| TXXA-FS | FRC Spectra x 1 | 120V AC 220W | 30 lbs 13 kg | 20,000 lumens |
| TXXA-FX | FRC Spectra Max x 1 | 120V AC 335W | 30 lbs 13 kg | 28,000 lumens |
| TXXA-W1 | Whelen PSP1 x 1 | 120V AC 75W | 25 lbs 11 kg | 8,517 lumens |
| TXXA-W12 | Whelen PSP1 x 2 | 120V AC 150W | 35 lbs 16 kg | 17,034 lumens |
| TXXA-W2 | Whelen PFP2 x 1 | 120V AC 150W | 30 lbs 13 kg | 20,442 lumens |
| TXXA-W4 | Whelen PFP4 x 1 | 120V AC 300W | 35 lbs 16 kg | 40,884 lumens |
| TXXA-CH | FireTech Helios x 1 | 120V AC 60W | 30 lbs 13 kg | 14,000 lumens |
| TXXA-CH2 | FireTech Helios x 2 | 120V AC 120W | 45 lbs 20 kg | 28,000 lumens |
| AC OPTIONS | Description |
|---|---|
| L5-15 | L5-15 Twist Lock in lieu of Standard 3-Prong Plug - 115V AC |
| L5-20 | L5-20 Twist Lock in lieu of Standard 3-Prong Plug - 115V AC |
| L6-15* | L6-15 Twist Lock in lieu of Standard 3-Prong Plug - 230V AC |
* L6-15 230V AC plugs only available with FRC and FireTech LEDs.
**Add -MB for Truck Mounting Brackets
TXX = TRIPOD HEIGHT
T40 = 40" Tripod or T50 = 50" Tripod
TRIDENT TRIPOD TRUCK MOUNT
WITH OPTIONAL 12V DC TRUCK POWER PLUG-IN
INCLUDES: Top Release Latch AND Bottom Mount
Optional: Truck Power 12V DC Power Plug
