DON’T GET CAUGHT
IN THE DARK

LIGHT TOWER SOLUTIONS FOR EVERY BUDGET

INTRODUCING FRC RADIANT COMMAND LEDS, A COMMAND LIGHT TOWER EXCLUSIVE LED

Command Light can now be spec’ed with FRC’s all-NEW Radiant Command LEDs! Manufactured by FRC and exclusive to Command Light, these economical LEDs pack 17,000 lumens in each head — 2,000 more lumens than similar economical LEDs. Reduce the cost of a new tower by 30% with the FRC Radiant Command LED, available on the Command Light Trident Tripod or our CL, Knight, Shadow or C-Lite light towers!

MEET THE COMMAND LIGHT EXCLUSIVE, FRC MANUFACTURED RADIANT COMMAND LED LINEUP

CL Series

TALLEST TOWER

The CL Series provides the largest reach, nearly 11' from its base.

CL Radiant COMMAND

KL Series

MID-SIZE SERIES

Command Light’s mid-size tower delivers a reach of nearly 7.5' from its base.

KL RADIANT COMMAND

SL Series

VERSATILE REACH

This series offers a reach of 4.5′, or up to 7.5′ with optional arm.

SL RADIANT COMMAND

C-LITE

COMPACT LIGHTING

Great for command units, this compact light offers rotation and 120° of tilt.

C-LITE RADIANT COMMAND

TRIPOD TRIDENT

MOBILE SCENE LIGHT

Offers multiple power options and provides a
40" or 50" reach

TRIPOD RADIANT COMMAND

THE ALL-NEW

Exclusive to Command Light and manufactured by Fire Research Corp., the Radiant Command LED lamphead provides symmetrical optics ideal for light tower and backlighting applications at an affordable price.

2,000 MORE LUMENS THAN SIMILAR ECONOMICAL LEDS

Reduces tower cost by 30%
Produces 17,000 Lumens
Uses less power consumption
Lessens fixture heat
Increases fixture lifespan
Features Symmetrical Lens

The Symmetrical lens directs flood lighting evenly onto the work area in a cone shape while focusing a spotlight beam into the distance.

VIEW FRC UPGRADE PACKAGES

CL SERIES

LEDS

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight

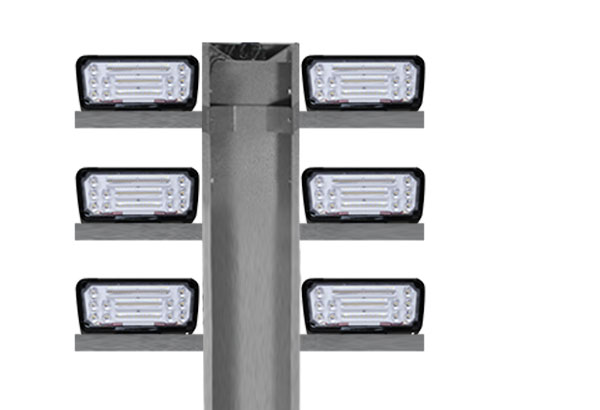

CL602A-FR	(6) FRC Radiant Command 120w	115V or 230V AC 1,020W	17,000 lumens	102,000 lumens	12" x 74" x 40" 305 mm x 1,880 mm x 1,015 mm	131” x 79” x 40" 3,330 mm x 2,010 mm x 1,015 mm	305 lbs 139 kg

LEDS

Scroll right for full chart.

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight

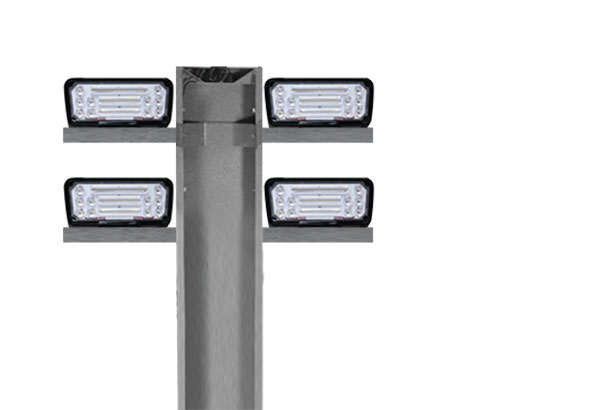

CL602D-FR	(4) FRC Radiant Command 120W	12V DC - 98 amps 780W	17,000 lumens	68,000 lumens	12" x 74" x 43" 305 mm x 1,880 mm x 1,095 mm	12" x 74" x 43" 305 mm x 1,880 mm x 1,095 mm	305 lbs 139 kg

KL SERIES

LEDS

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL415A-FR	(6) FRC Radiant Command 120W	115V or 230V AC 1,020W	17,000 lumens	102,000 lumens	12" x 47" x 30" 305 mm x 1,195 mm x 760 mm	87.5" x 52 " x 30" 2,225 mm x 1,320 mm x 760 mm	165 lbs 75 kg

Scroll right for full chart.

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight

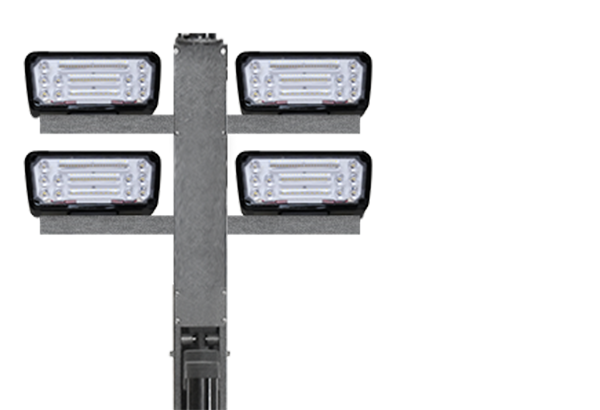

KL415D-FR	(4) FRC Radiant Command 120W	12V DC – 65 amps 780W	17,000 lumens	68,000 lumens	12” x 47” x 30” 305 mm x 1,195 mm x 760 mm	87.5” x 52" x 30” 2,225 mm x 1,320 mm x 760 mm	165 lbs 75 kg

SL SERIES

LEDS

Scroll right for full chart.

AC/DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight

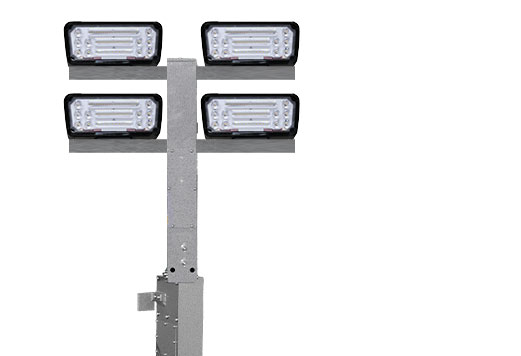

SL442A–FR	(4) FRC Radiant Command 120W	12V DC + 115V or 230V AC 1,060W	17,000 lumens	68,000 lumens	8" x 54" x 28" 205 mm x 1,375 mm x 710 mm	55" x 36" x 28" 1,395 mm x 915 mm x 710 mm	75 lbs 35 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
SL442D-FR	(4) FRC Radiant Command 120W	12V DC – 55 amps 660W	17,000 lumens	68,000 lumens	8" x 54" x 28" 205 mm x 1,375 mm x 710 mm	55" x 36" x 28" 1,395 mm x 915 mm x 710 mm	75 lbs 35 kg

LEDS

Scroll right for full chart.

AC/DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight

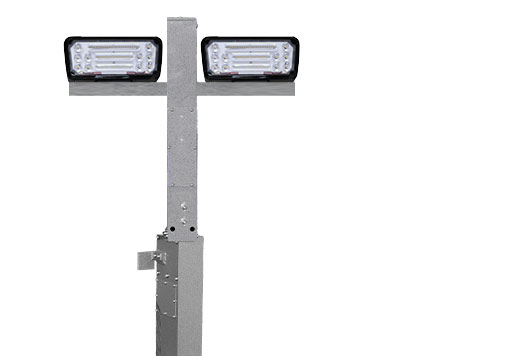

SL422A-FR	(2) FRC Radiant Command 120W	12V DC + 115V or 230V AC 420W	17,000 lumens	34,000 lumens	8" x 54" x 28" 205 mm x 1,375 mm x 710 mm	8" x 54" x 28" 205 mm x 1,375 mm x 710 mm	65 lbs 30 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
SL422D-FR	(2) FRC Radiant Command 120W	12V DC – 35 amps 420W	17,000 lumens	34,000 lumens	8” x 54” x 28” 205 mm x 1,375 mm x 710mm	55” x 36 “ x 28” 1,395 mm x 915 mm x 710 mm	65 lbs 30 kg

LEDS

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
SS322A-CH	(2) Helios 60w	12V DC + 115V or 230V AC 240w	14,000 lumens	28,000 lumens	9" x 42" x 30" 230 mm x 1,065 mm x 760 mm	42.5" x 45" x 30" 1,080 mm x 1,145 mm x 760 mm	45 lbs 20 kg
SS322A-HS	(2) Firetech SL-X-15 185w	115V or 230V AC 490w	28,000 lumens	56,000 lumens	10" x 43" x 30" 255 mm x 1,090 mm x 760 mm	42.5" x 45" x 30" 1,080 mm x 1,090 mm x 760 mm	45 lbs 20 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
SS322D-CH	(2) Helios 60w	12V DC – 20 amps 240w	14,000 lumens	28,000 lumens	9" x 42" x 30" 230 mm x 1,065 mm x 760 mm	43" x 45" x 30" 1,090 mm x 1,145 mm x 760 mm	45 lbs 20 kg
SS322D-HS	(4) Firetech SL-X-15 185w	12V DC – 41 amps 490w	28,000 lumens	56,000 lumens	10" x 43" x 30" 255 mm x 1,090 mm x 760 mm	43" x 45" x 30" 1,080 mm x 1,170 mm x 760 mm	45 lbs 20 kg

COMPACT LIGHTING

LEDS

Scroll right for full chart.

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	WEIGHT

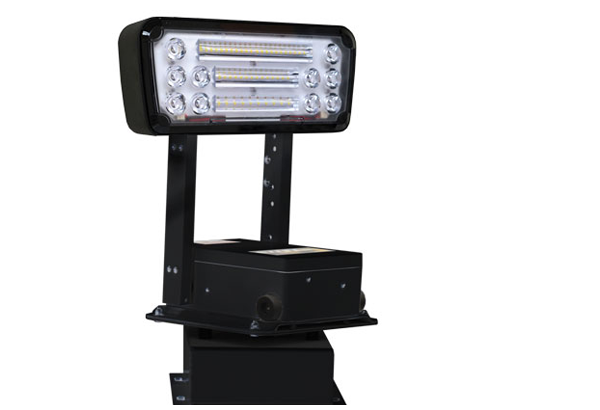

CD113D-FR	(1) FRC Radiant Command 120W	12V DC - 16 amps 200W	17,000 lumens	17,000 lumens	9" x 14" x 19" 230 mm x 355 mm x 485 mm	21" x 14" x 19" 535 mm x 355 mm x 485 mm	30 lbs 14 kg

RADIANT COMMAND SPECS

Scroll right for full chart.

RADIANT COMMAND	LEDs				POWER	TOTAL WATTS	OUTPUT
AC		Exclusive Command Light fixture manufactured by FRC. Features with spot/flood combination and 2,000 more lumens than similar economical LEDS			115V or 230V AC	120W	17,000 lumens
DC					12V or 24V DC	120W	17,000 lumens
