BUILD YOUR FIRE TRUCK TOWER

USE THIS CONFIGURATOR TO HELP YOU SPEC A LIGHT TOWER

Considering a light tower? Use our configurator to help you build your fire truck light tower. Alternatively, if you already know the model number of the light tower you’re looking for, type it in below. The configurator is designed to narrow down the key selections that differentiate our many light towers for sale. Choose your 1. Tower Height, 2. Power Source, 3. Head Quantity and 4. Light Fixture through this process. Once complete, your tower selection will be generated with an option to request more details, pricing and available options. This configurator does not include non-rotating towers (the Straight Shadow) or Command Light's compact lighting option (the C-Lite). Looking for more custom options? Click here. Please note, the generated image below provides a good representation of what the tower will look like; however, it’s not exact.



SHADOW SERIES

SL442D-FR

TOTAL OUTPUT:68,000 lumens
TOWER REACH:4.5 feet
ROTATION RANGE:350 degrees
DEPLOYMENT TIME:15 seconds or less
NUMBER OF HEADS:4
LIGHTING:FRC Radiant Command
POWER REQUIREMENTS:12V DC – 55 amps 660w
HxWxD (NESTED):8in x 54in x 28in
HxWxD (UPGRIGHT):55in x 36in  x 28in
WEIGHT:75 lbs, 35 kg

ADDITIONAL OPTIONS

The following additional options are available on this tower. To spec any of these options, please consult with your sales representative. Note that you cannot spec a strobe and a camera on the same tower.

Strobe Camera Color Controls Long Arm Backlight

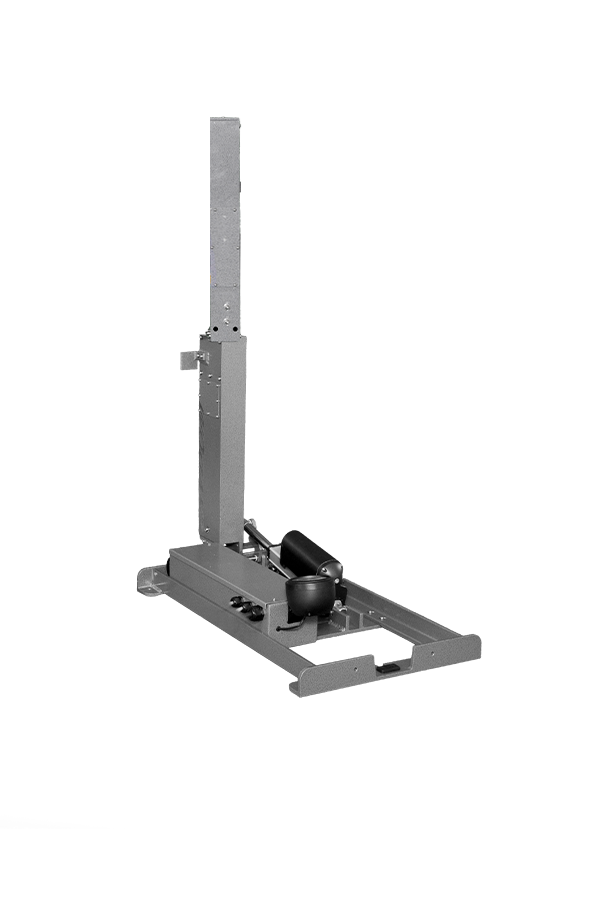

Representation only; imagery may not be to scale proportionally
