EOS-RDL
COMPACT RAPID DEPLOY BATTERY POWERED WORK LIGHT
LIGHT ANY SCENE, IN THE BLINK OF AN EYE.
YOUR FIRE DEPARTMENT'S CURRENT NON-PROPRIETARY BATTERY PLATFORM + LEDS DESIGNED FOR THE FIREGROUND
Command Light continues to elevate scene lighting, this time revolutionizing the mobile lighting equipment market with the introduction of its NEW BATTERY-POWERED EOS-RDL (Rapid Deploy Light). This battery powered work light is known for its reliability and versatility among firefighter lights. Choose your favorite non-proprietary battery AND favorite high-powered LED!

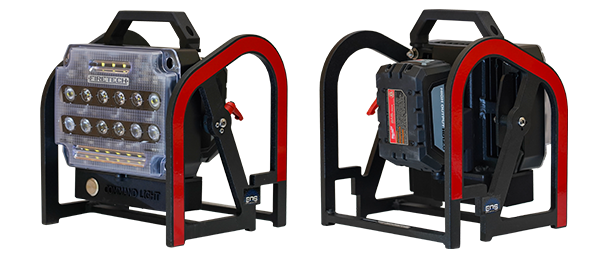

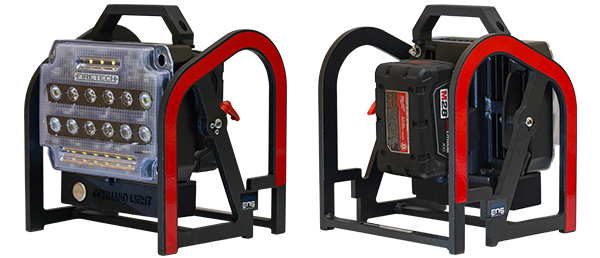

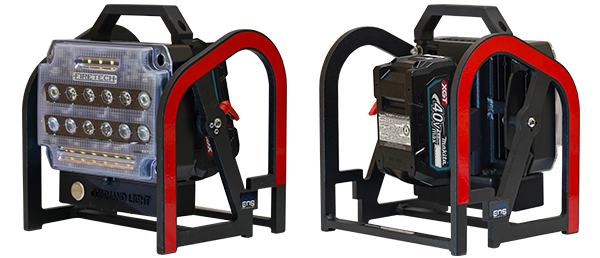

MODEL PICTURED: RL11D-HE-BW
THE BATTERY POWERED WORK LIGHT THAT LETS YOU CHOOSE YOUR FAVORITE ...
HIGH-POWERED FIREFIGHTER LIGHTS + NON-PROPRIETARY BATTERY
BUILD YOUR EOS-RDL
CHOOSE YOUR FAVORITE HIGH-POWERED LED
| DC | Lighting Fixture | Power Req. | Weight* | Total Output | ESTIMATED BATTERY RUN TIME IN MINUTES ** | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EOS-RDL DIMENSIONS HxWxD: 10.5" x 9.75" x 9" (265mm x 250mm x 230mm) | -BD 9Ah | -BD 12Ah | -BD 15Ah | Makita XGT 4Ah | Makita XGT 5Ah | Makita XGT 8Ah | Milwaukee RedLithium 3Ah | Milwaukee RedLithium 5Ah |
||||

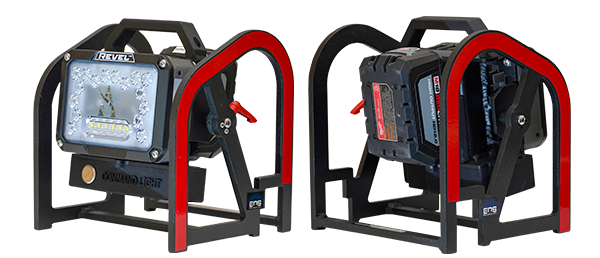

| RL11D-AR-BX |  Akron Revel SL | 110W | 10 lbs 4.5 kg | 14,000 lumens | 85 min. | 110 min. | 132 min. | 75 min. | 93 min. | 135 min. | 64 min. | 102 min. |

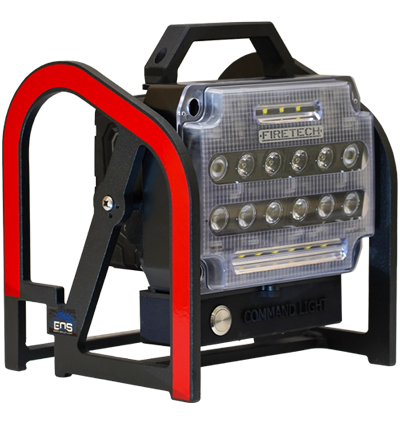

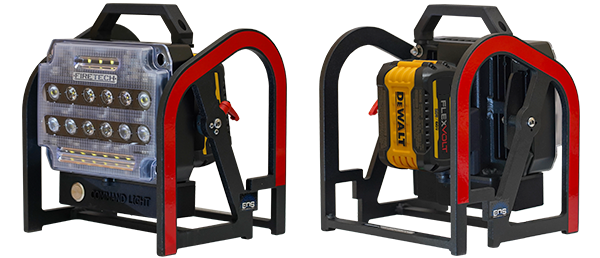

| RL11D-HE-BX |  FireTech Guardian Elite | 120W | 13 lbs 6 kg | 20,500 lumens | 86 min. | 114 min. | 135 min. | 76 min. | 92 min. | 136 min. | 68 min. | 107 min. |

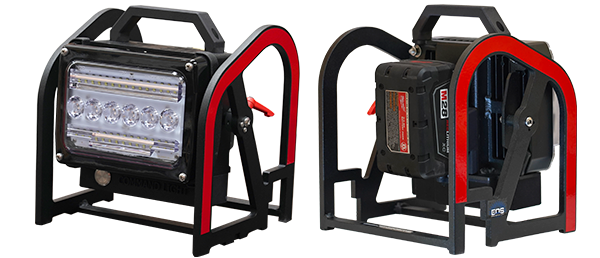

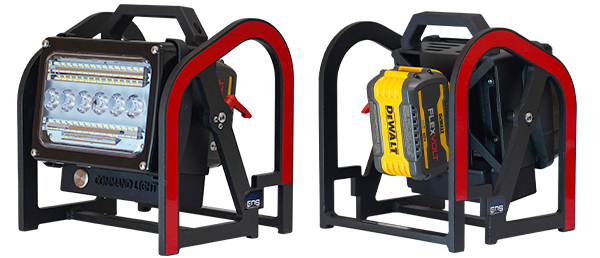

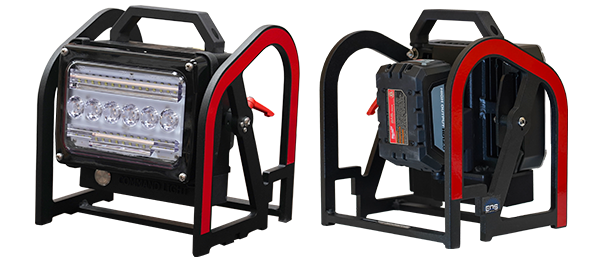

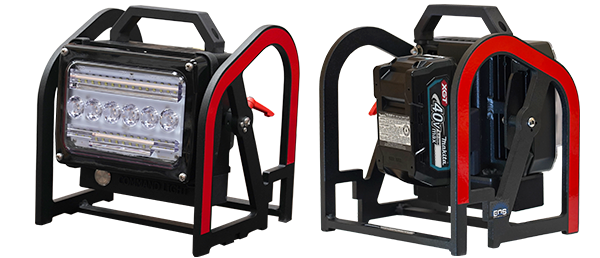

| RL11D-FN-BX |  FRC Mini Spectra | 130W | 11 lbs 6 kg | 14,000 lumens | 79 min. | 105 min. | 126 min. | 70 min. | 85 min. | 125 min. | 62 min. | 99 min. |

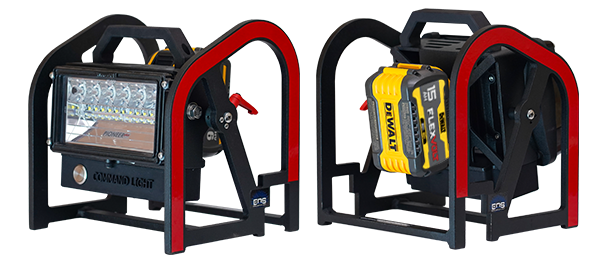

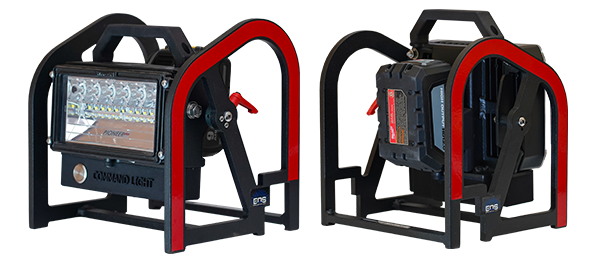

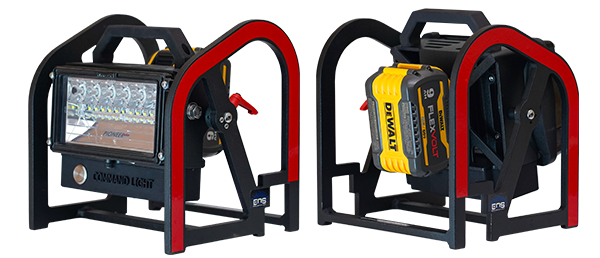

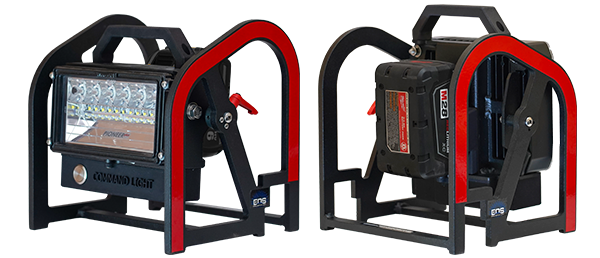

| RL11D-W1-BX |  Whelen™ PCH x 1 | 75W | 9 lbs 4 kg | 10,130 lumens | 145 min. | 192 min. | 225 min. | 130 min. | 160 min. | 235 min. | 105 min. | 172 min. |

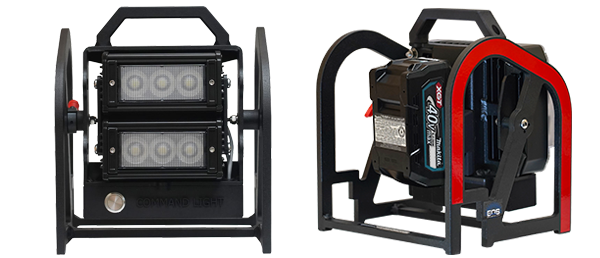

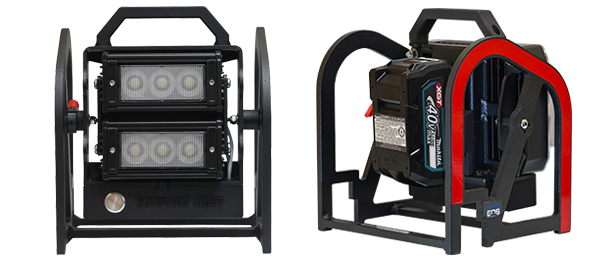

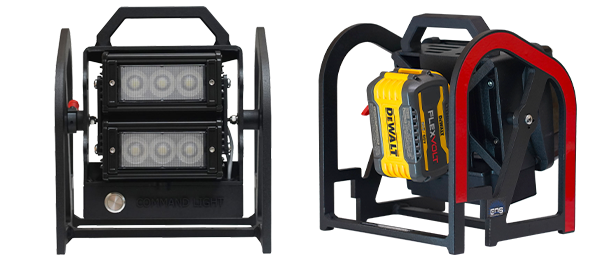

| RL11D-TT-BX |  Tomar TRX6 x2 | 60W | 9 lbs 4 kg | 5,520 lumens | 172 min. | 228 min. | 270 min. | 152 min. | 184 min. | 272 min. | 136 min. | 214 min. |

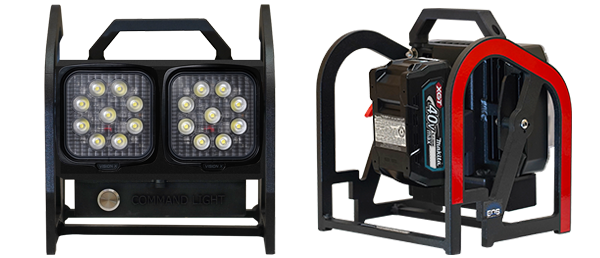

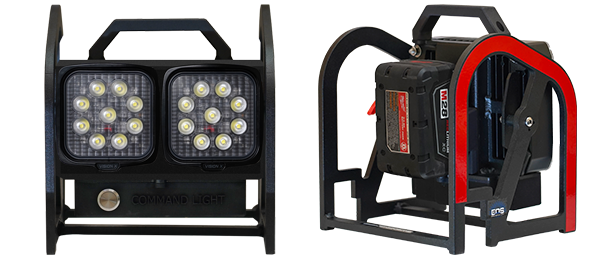

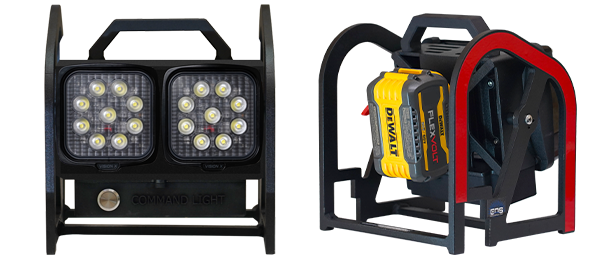

| RL11D-VV-BX |  Vision X VL29 x2 | 90W | 9 lbs 4 kg | 9,504 lumens | 114 min. | 152 min. | 182 min. | 101 min. | 123 min. | 181 min. | 90 min. | 143 min. |
BX = NON-PROPRIETARY POWER SOURCE OPTIONS
Replace BX with battery designator and battery choice from the power option on the chart below.

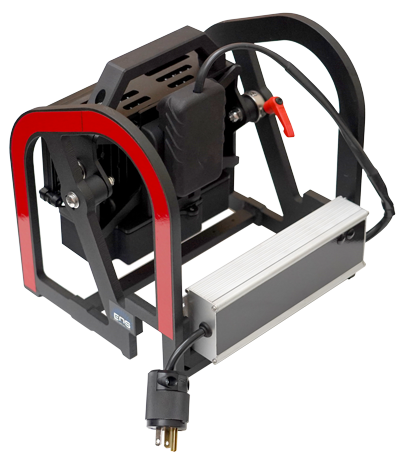

SP = 120V AC SHORE POWER OPTION - 15A PLUG**
Add "- SP " to the end of any model number to add optional 120V 15A Plug
*Weights listed with no options.
**Shore Power only available in addition to a battery option.
*** For M28 batteries or chargers, please see your Genesis, TNT or Weber dealer.
**** Reported run times based on fully charged batteries at 70° F; temperature and battery condition can impact battery light performance. Light blinks three times to warn of low-battery conditions.
CHOOSE A NON-PROPIETARY BATTERY
BD = DeWalt | BK = Makita | BW and BL = Milwaukee
| POWER OPTIONS | DESCRIPTION |
|---|---|
| BD | Battery Option -BD Ready |
| BD-09 | -BD 9Ah Battery and Fast Charger |
| BD-12 | -BD 12Ah Battery and Fast Charger |
| BD-15 | -BD 15Ah Battery and Fast Charger |
| BK | Battery Option - Makita XGT Ready |
| BK-04 | Battery Option - Makita XGT 4Ah Battery and Charger |
| BK-05 | Battery Option - Makita XGT 5Ah Battery and Charger |
| BK-08 | Battery Option - Makita XGT 8Ah Battery and Charger |
| BW or BL | Battery Option - Milwaukee Ready*** |
| SP** | 115V or 220V AC Shore Power Option - 15A Plug |
**Shore Power only available in addition to a battery option.
*** For Milwaukee batteries or chargers, please see your Genesis, TNT or Weber dealer.
