TRAFFIC FLOW BOARDS
LED TRAFFIC ADVISOR LIGHT BARS AND ARROW STICKS

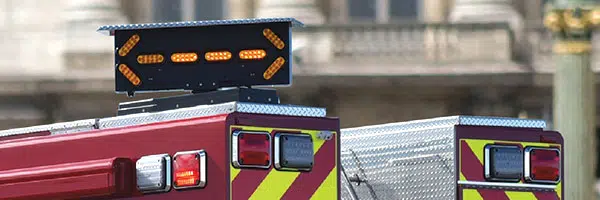

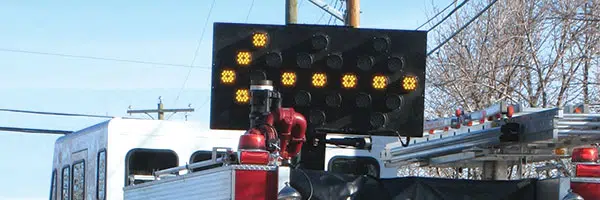

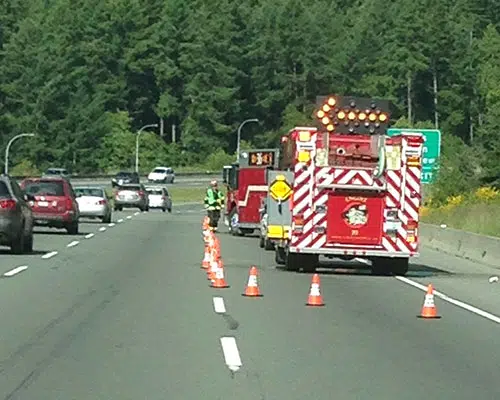

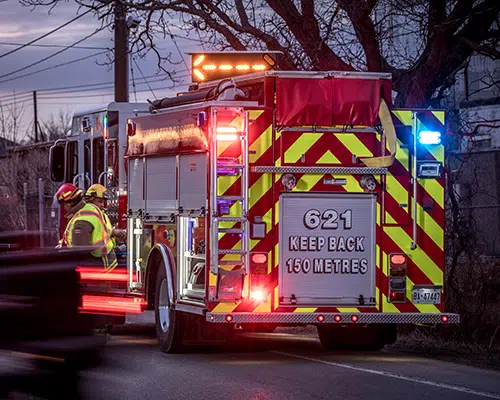

INCREASE YOUR APPARATUS’ VISIBILITY WITH A TRAFFIC FLOW BOARD
With rotational capabilities and multiple arrow patterns, Command Light’s Traffic Flow Boards improve on-scene visibility and responder safety. Available in eight different models (based on deployment and traffic pattern), these units conserve space when stowed, while the versatile mounting system gives crews the ability to select various boards to conform to department requirements. Each model comes with standard rotation, giving crews the ability to position traffic advisory arrows toward traffic to maximize effectiveness during blocking modes.
HOW TO CHOOSE A TRAFFIC FLOW BOARDS
Available in six different models (based on deployment and traffic pattern features), these units conserve space when stowed, while the versatile mounting system gives crews the ability to select various boards to conform to department standards.
STEP 1: SELECT YOUR FLOW BOARD PROFILE
FOLD-DOWN DESIGN (H MODELS)
The H Model features a fold-down design that mounts to the apparatus to create a low-profile. Once deployed, the flow board can be rotated toward oncoming traffic.

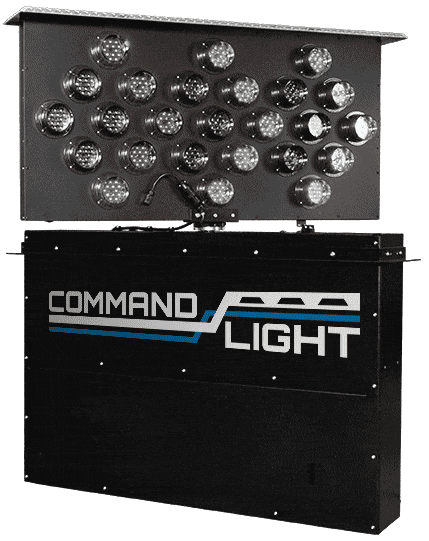

VERTICAL POP-UP (V MODELS)
The V Model’s patented motion (US Patent #8638209) creates the lowest possible profile with this vertical pop-up design that recesses into the apparatus.
STEP 2: SELECT YOUR TRAFFIC PATTERN

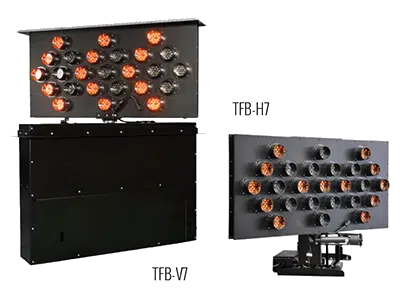

7 SERIES LED TRAFFIC ADVISOR ARROW STICK
The 7 Series offers the greatest variety of traffic patterns in this LED traffic advisor arrow stick and can be deployed via the fold-down design or the vertical pop-up design

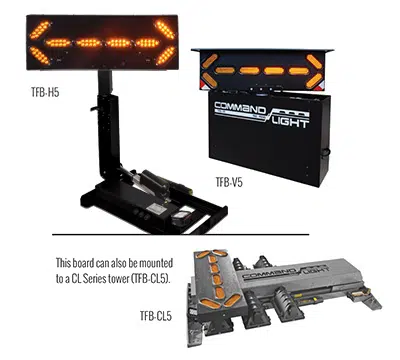

5 SERIES LED TRAFFIC ADVISOR ARROW STICK
The 5 Series offers essential traffic patterns in a lighter design. The LED arrow stick can be deployed via the fold-down design or the vertical pop-up design.

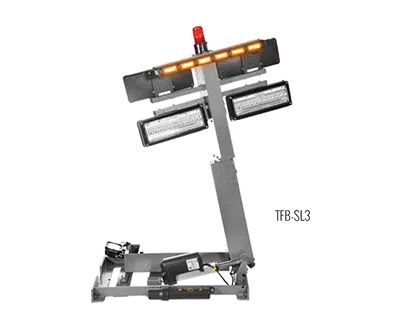

3 SERIES LED TRAFFIC ADVISOR LIGHT BAR
The 3 Series features an LED traffic advisor light bar that provides a pulsing movement to guide traffic. The light bar mounts to the top of a SL Series traffic tower.
MESSAGE BOARD
Our Message Board Series provides up to two lines of programmed messaging, digital graphics and arrow patterns on a 66" wide
x 28" high (2-line) or 42" high (3-line)
digital screen.
EnHANCE YOUR COMMAND LIGHT TOWER WITH A TRAFFIC ADVISOR

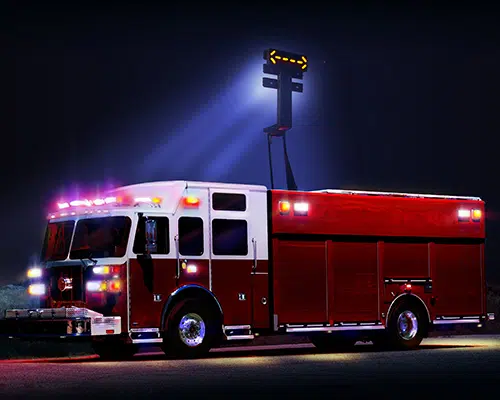

Command Light's multitasking TFB-CL5 can light up a scence while directing traffic, increasing your crews visibility and saftey at the touch of a button.
TRAFFIC ADVISORS
Click the chart's model number for that unit's individual spec sheet.
| DC | Movement | TRAFFIC PATTERN | POWER REQUIREMENTS | HXWXD (NESTED) | HXWXD (UPRIGHT) | Weight |
|---|---|---|---|---|---|---|
| TFB-V7 | Vertical pop-up, recessed in apparatus | Greatest variety of traffic patterns | 12V DC - 19 amps | 43" x 64" x 13" 1,092 mm x 1,626 mm x 330 mm | 75" x 64" x 13" 1,905 mm x 1,626 mm x 330 mm | 220 lbs 100 kg |
| TFB-H7 | Horizontal Fold-down design | Greatest variety of traffic patterns | 12V DC - 28 amps | 16" x 60" x 46" 406 mm x 1,524 mm x 1,168 mm | 44" x 60" x 66" 1,118 mm x 1,524 mm x 1,676 mm | 150 lbs 68 kg |
| TFB-V5 | Vertical pop-up, recessed in apparatus | Essential traffic patterns | 12V DC - 17 amps | 28" x 44" x 13" 711 mm x 1,118 mm x 330 mm | 43" x 44" x 13" 1,092 mm x 1,118 mm x 330 mm | 150 lbs 68 kg |
| TFB-H5 | Horizontal Fold-down design | Essential traffic patterns | 12V DC - 17 amps | 8" x 48" x 40" 203 mm x 1,219 mm x 1,106 mm | 52" x 70" x 40" 1,321 mm x 1,778 mm x 1,016 mm | 80 lbs 36 kg |
| TFB-CL5 | Mounted to a CL Series tower | Essential traffic patterns | 12V DC - 10 amps + tower requirements | Variable based on tower selection | Variable based on tower selection | 28 lbs 13kg + tower |
| TFB-SL3 | Mounted to a Shadow Series tower | Directional light bar | 12V DC - 5 amps + tower requirements | Variable based on tower selection | Variable based on tower selection | 14 lbs 6kg + tower |
| TFB-HM2 | Horizontal Fold-down, ±45º rotation design | 2-lines of text or arrows | 12V DC - 27 amps 325W | 16" x 73" x 52" 405mm x 1,855mm x 1,320mm | 50" x 75" x 61" 1,270mm x 1,905mm x 1,550mm | 220 lbs 100 kg |
| TFB-HM3 | Horizontal Fold-down, ±45º rotation design | 3-lines of text or arrows | 12V DC - 38 amps 450W | 16" x 73" x 66" 405mm x 1,855mm x 1,675mm | 64" x 75" x 61" 1,625mm x 1,905mm x 1,550mm | 220 lbs 100 kg |
