THE Z-LIFT



THE LED TRAFFIC ADVISOR LIGHT BAR LIFT SYSTEM


ELEVATE YOUR EMERGENCY TRAFFIC ADVISOR WITH THE Z-LIFT

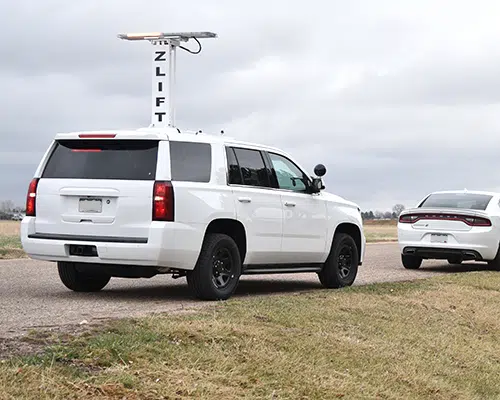

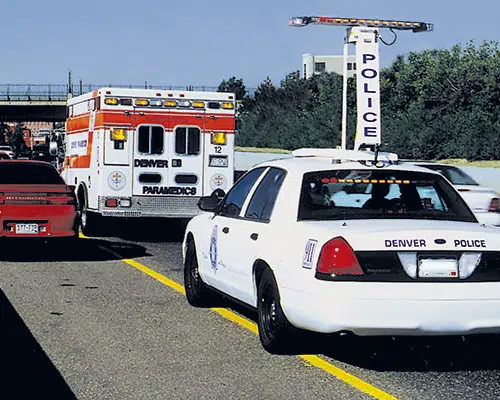

Improve visibility by elevating your vehicle’s warning lights above the roofline with Command Light’s Z-Lift. This lift includes an umbilical remote with auto-deploy and auto-park feature. With the press of a button, the lift can be auto deployed to be square or rotate 45 degrees or 90 degrees to save time. The Z-Lift can also be used to raise the vehicle's various antennas or WiFi router/range extender.


  • Elevates 40"; in 10 seconds
  • Rotations 90 degrees (left and right), allowING the light bar to be positioned toward oncoming traffic


Z-LIFT

DCPOWER
REQUIREMENTS
HXWXD

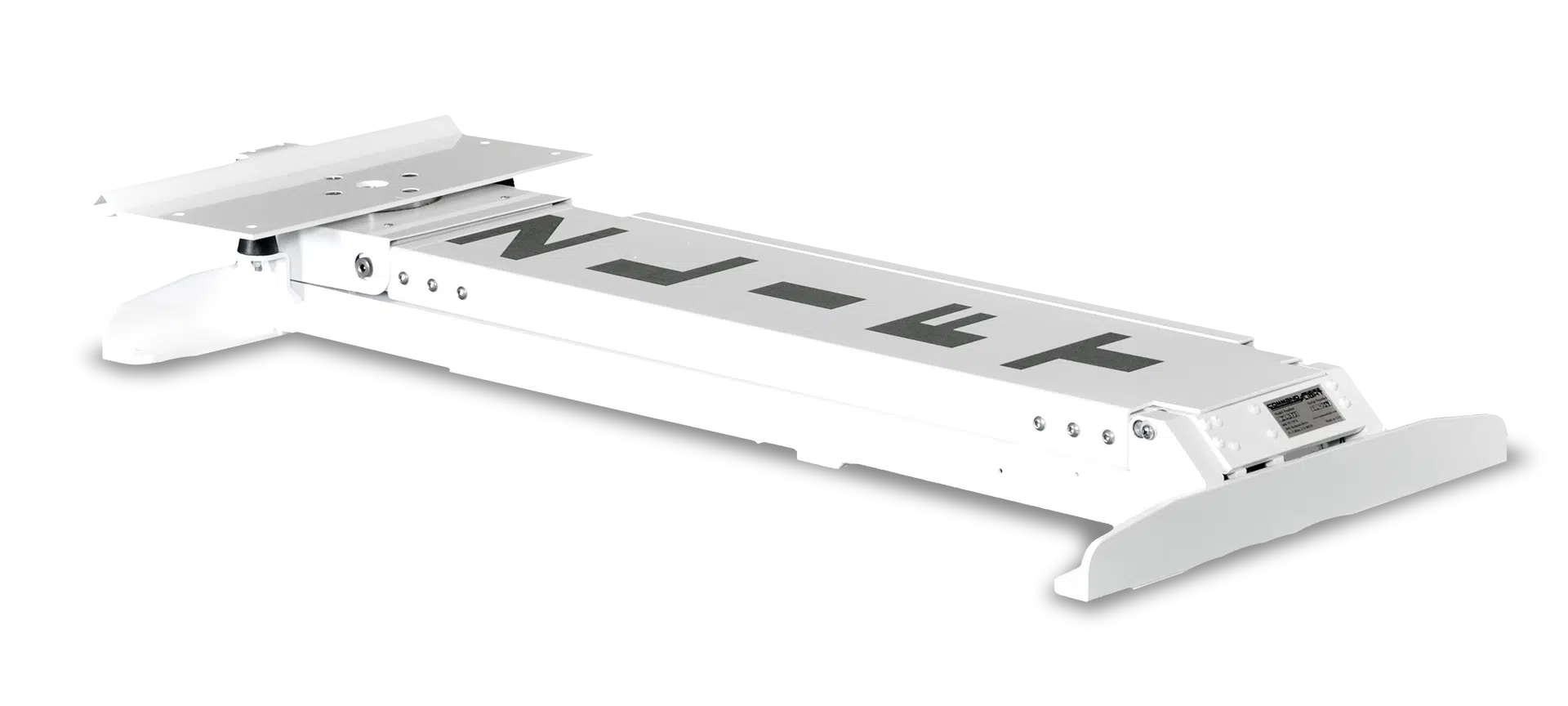

(NESTED)
HXWXD
(UPRIGHT)
Weight
Z-LIFT12V DC - 17 amps
200W
6" x 22” x 47”
155 mm x 560 mm x 1,195 mm
43" x 22" x 75"
1,092 mm x 560 mm x 1,905 mm
62 lbs
28 kg
