EQUIP YOUR COMMAND LIGHT
WITH FIRETECH LIGHTS

Command Light is available with some of your favorite Firetech lights. These lights, by HiViz Lights, use only the top binned LEDs to ensure the highest-quality fixtures, utilize Pulse Width Modulation for prolonged life and consume up to 2/3 less power than other LEDs with similar outputs. Did we mention Firetech lights come with a lifetime warranty? Together, we’ve partnered with HiViz to bring two of the most revolutionary light towers to market — the Knight Series Slim and the Helios light tower light lineup.

Learn more about Firetech lights with QandA with Firetech's Sam Massa

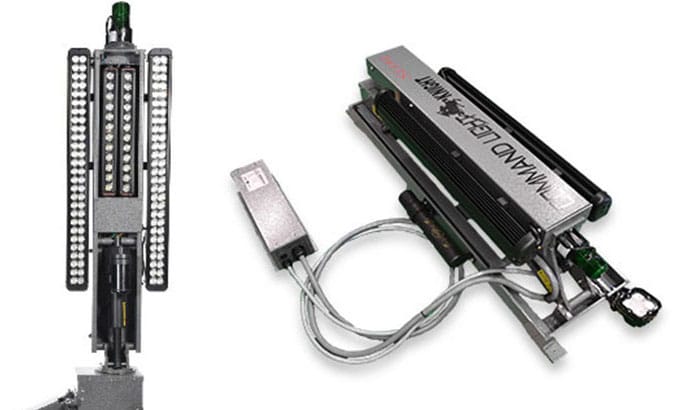

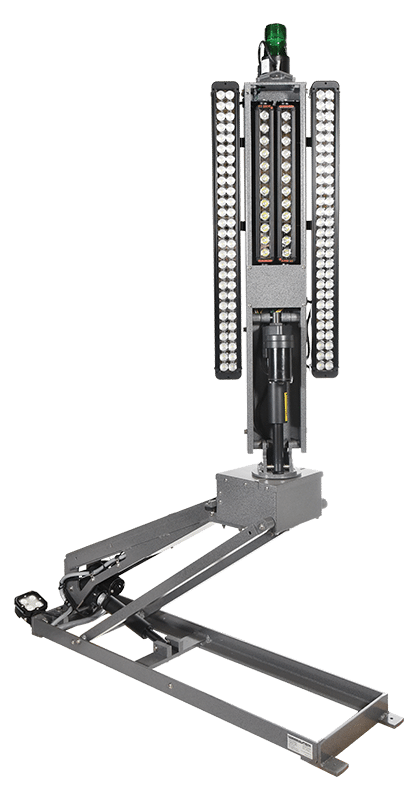

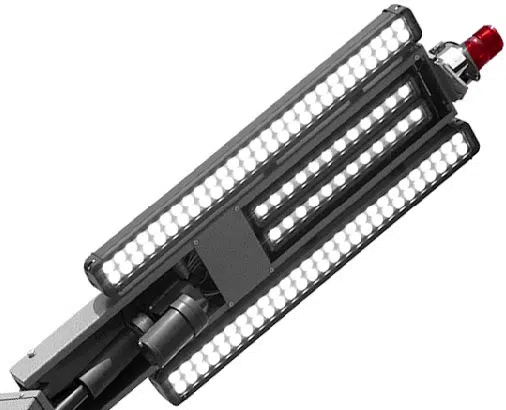

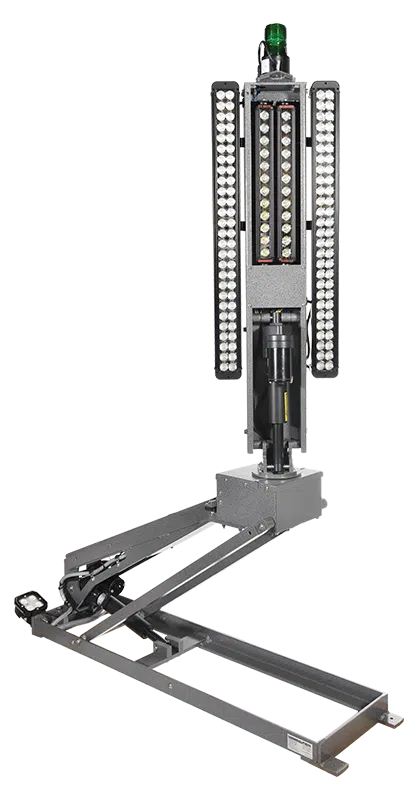

THE KNIGHT SERIES SLIM TOWER

The KL Slim delivers the Knight Series smallest footprint, stowing flat at just 12” x 13” x 53” thanks to this narrow design, ideal for smaller to mid-size apparatus, or larger trucks with limited space. This compact tower, available in AC or DC, packs a total output of 70,000 lumens with two 270-watt brow lights and two smaller 60-watt fixtures.

KNIGHT SLIM

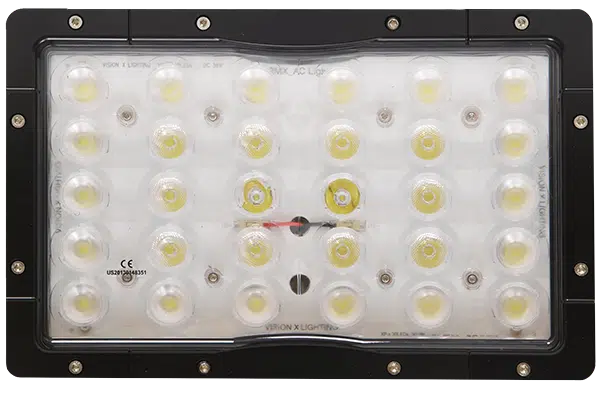

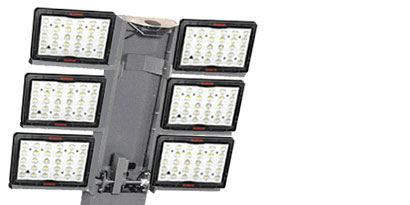

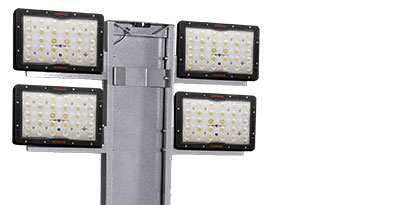

THE HELIOS LIGHT TOWER LINEUP

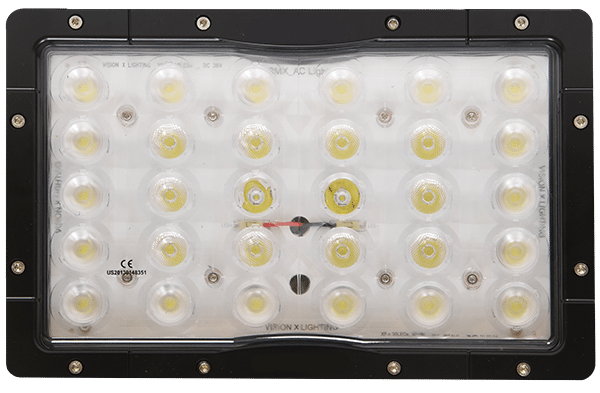

Command Light and HiViz Lights have partnered together to create a Command Light-exclusive Firetech fixture that shaves the cost of a new light tower by 33% while delivering 14,000 lumens per fixture! This fixture can be spec’ed on CL Series, KL Series, SL Series, Straight Shadows and C-Lite towers. The Helios is also perfect for quartz-to-LED light tower retrofits.

CL
KL
SL
C-LITE

CL SERIES


LEDS


Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
CL602A-HS(6) FIRETECH SL-X-15
185W		115V or 230V AC
1,540W		28,000 lumens168,000 lumens12" x 74" x 43"
305 mm x 1,880 mm x 1,095 mm		131" x 79 " x 43"
3,330 mm x 2,010 mm x 1,095 mm		325 lbs
147 kg

LEDS


Scroll right for full chart.

DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
CL602D-HS(4) FIRETECH SL-X-15
185W		12V DC - 87 amps
1,040W		28,000 lumens112,000 lumens12" x 74" x 43"
305 mm x 1,880 mm x 1,095 mm		131" x 79 " x 43"
3,330 mm x 2,010 mm x 1,095 mm		325 lbs
147 kg

KL SERIES


LEDS


Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight

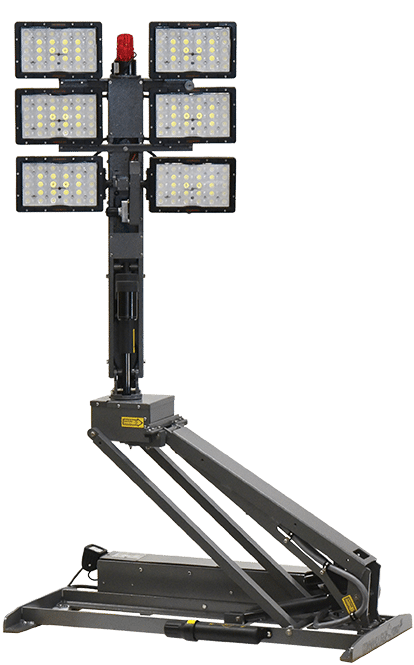

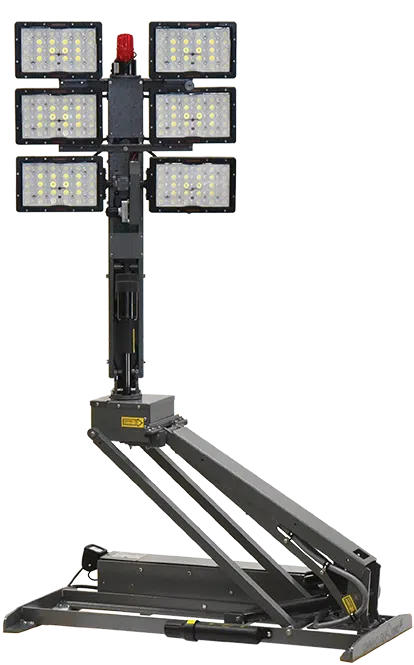

KL415A-CH(6) Helios
60w		115V or 230V AC
660w		14,000 lumens84,000 lumens12" x 47" x 28"
305 mm x 1,195 mm x 710 mm		87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm		165 lbs
75 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415D-CH(6) Helios
60w		12V DC – 55 amps
660w		14,000 lumens84,000 lumens12" x 47" x 28"
305 mm x 1,195 mm x 710 mm		87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm		165 lbs
75 kg

LEDS


Scroll right for full chart.

DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight

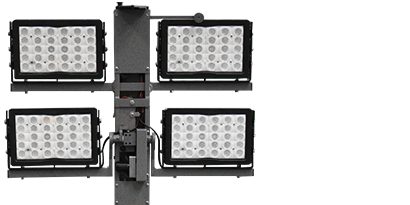

KL415D-HS(4) Firetech SL-X-15
185w		12V DC - 87 amps
1,040w		28,000 lumens112,000 lumens14" x 47" x 34"
355 mm x 1,195 mm x 865 mm		87.5" x 52 " x 34"
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg

SL SERIES


LEDS


Scroll right for full chart.

AC/DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL442A-CH(4) Helios
60w		12V DC +115V or 230V AC
420w		14,000 lumens56,000 lumens8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL442D-CH(4) Helios
60w		12V DC 35 amps
420w		14,000 lumens56,000 lumens8" x 54" x 28"
205 mm x 1,375 mm x 710 mm		55" x 36" x 28"
1,395 mm x 915 mm x 710 mm		75 lbs
35 kg
SL442D-HS(4) Firetech SL-X-15
185w		12V DC 77 amps
920w		28,000 lumens112,000 lumens8" x 54" x 28"
205 mm x 1,375 mm x 710 mm		55" x 36" x 28"
1,395 mm x 915 mm x 710 mm		75 lbs
35 kg

LEDS


Scroll right for full chart.

AC/DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL422A-CH(2) Helios
60w		12V DC + 115V or 230V AC 300w14,000 lumens28,000 lumens8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		70 lbs
32 kg
SL422A-HS(2) Firetech SL-X-15
185w		12V DC + 115V or 230V AC 550W28,000 lumens112,000 lumens8" x 54" x 34"
205mm x 1,375 mm x 865 mm		55" x 36 " x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL422D-CH(2) Helios
60w		12V DC - 20 amps
240w		14,000 lumens28,000 lumens8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		70 lbs
32 kg
SL422D-HS(2) Firetech SL-X-15
185w		12V DC - 46 amps
550w		28,000 lumens56,000 lumens8" x 54" x 34"
205mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg

LEDS


Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SS322A-CH(2) Helios
60w		12V DC + 115V or 230V AC
240w		14,000
lumens		28,000
lumens		9" x 42" x 30"
230 mm x 1,065 mm x 760 mm		42.5" x 45" x 30"
1,080 mm x 1,145 mm x 760 mm		45 lbs
20 kg
SS322A-HS(2) Firetech SL-X-15
185w		115V or 230V AC
490w		28,000
lumens		56,000
lumens		10" x 43" x 30"
255 mm x 1,090 mm x 760 mm		42.5" x 45" x 30"
1,080 mm x 1,090 mm x 760 mm		45 lbs
20 kg

Scroll right for full chart.

DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SS322D-CH(2) Helios
60w		12V DC – 20 amps
240w		14,000
lumens		28,000
lumens		9" x 42" x 30"
230 mm x 1,065 mm x 760 mm		43" x 45" x 30"
1,090 mm x 1,145 mm x 760 mm		45 lbs
20 kg
SS322D-HS(4) Firetech SL-X-15
185w		12V DC – 41 amps
490w		28,000
lumens		56,000
lumens		10" x 43" x 30"
255 mm x 1,090 mm x 760 mm		43" x 45" x 30"
1,080 mm x 1,170 mm x 760 mm		45 lbs
20 kg

COMPACT LIGHTING


LEDS


Scroll right for full chart.

DCLightingPower
Requirements		Output
(Per
Light)		Total OutputH×W×D
(Nested)		H×W×D
(Upright)		WEIGHT
CD113D-CH(1) Helios
60w		12V DC – 12 amps
140w		14,000 lumens14,000 lumens9" x 14" x 19"
230 mm x 355 mm x 485 mm		21" x 14" x 19"
535 mm x 355 mm x 485 mm		30 lbs
14 kg

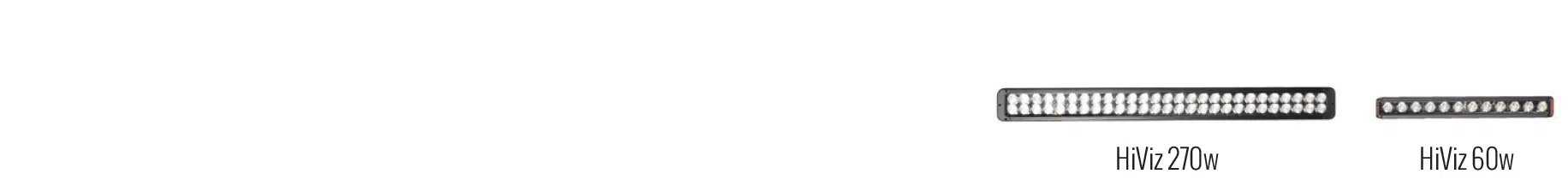

KNIGHT SLIM


HiViz

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight

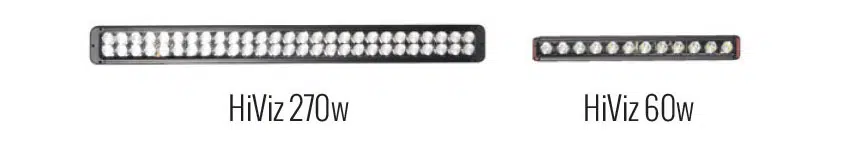

KL409A-H4
(2) FireTech – 270w
(2) FireTech – 60w		115V AC - 960w270w: 28,500
60w: 6,500		70,000
lumens		12" x 53" x 13"
305 mm x 1,345 mm x 330 mm 		87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm		165 lbs
75 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL409D-H4(2) FireTech – 270w
(2) FireTech – 60w		12V DC - 960w270w: 28,500
60w: 6,500		70,000
lumens		12" x 53" x 13"
305 mm x 1,345 mm x 330 mm 		87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm 		165 lbs
75 kg

SHADOW SLIM


LEDs


Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL423A-H2
(2) FireTech – 270w115V AC - 720w28,500
lumens		57,000
lumens		8" x 63" x 11"
605 mm x 1,600 mm x 280 mm 		66" x 42" x 11"
1,675 mm x 1,600 mm x 280 mm 		65 lbs
35 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL423D-H2
(2) FireTech – 270w12V DC - 60 amps
720W		28,500
lumens		57,000
lumens		8" x 63" x 11"
605 mm x 1,600 mm x 280 mm 		66" x 42" x 11"
1,675 mm x 1,600 mm x 280 mm 		65 lbs
35 kg
BUILD YOUR TOWER

FIRETECH FIXTURES

Scroll right for full chart.

ACLEDsPOWERTOTAL WATTSOUTPUT
HELIOS*heliosExclusive Command Light fixture that delivers an economical LED!115V or 230V AC60w14,000 lumens
FIRETECH SL-X-15**fireTech-SLX15More output with less power consumption115V or 230V AC185w28,000 lumens

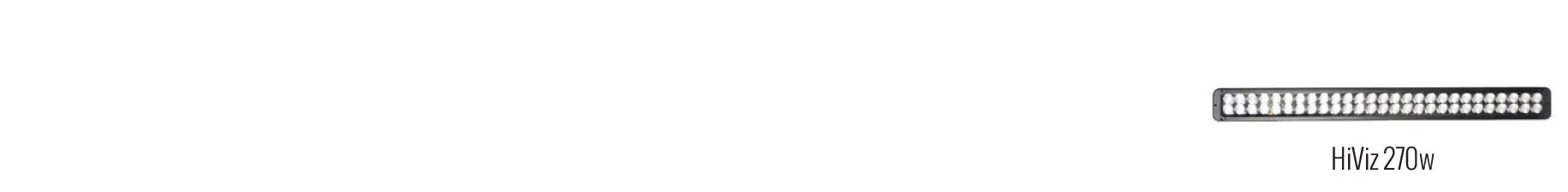

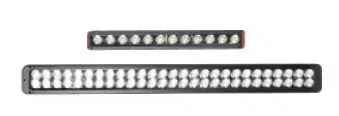

FIRETECH HIVIZKnight Slim exclusive, featuring two 270-watt and two 60-watt fixtures115V AC60w
270w		6,500 lumens
28,000 lumens

Scroll right for full chart.

DCLEDsPOWERTOTAL
WATTS		OUTPUT
HELIOS*heliosExclusive Command Light fixture that delivers an economical LED!12V or 24V DC60w14,000 lumens
FIRETECH GUARDIAN ELITEFireTechGuardianEliteProduces up to 4 times the light output at half the size and cost of similar fixtures12V or 24V DC120w20,500 lumens
FIRETECH SL-X-15**fireTech-SLX15More output with less power consumption12V or 24V DC185w28,000 lumens
FIRETECH HIVIZKnight Slim exclusive, featuring two 270-watt and two 60-watt fixtures12V or 24V DC60w
270w		6,500 lumens
28,500 lumens

*An exclusive Command Light fixture, manufactured by HiViz LED Lighting. **Available upon request.
