KL SERIES

KNIGHT SERIES LIGHT TOWERS WITH 7.5’ REACH


KL SERIES: MID-SIZE UNIT

Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.

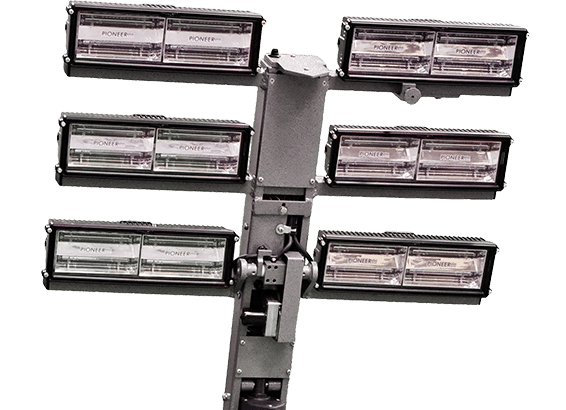

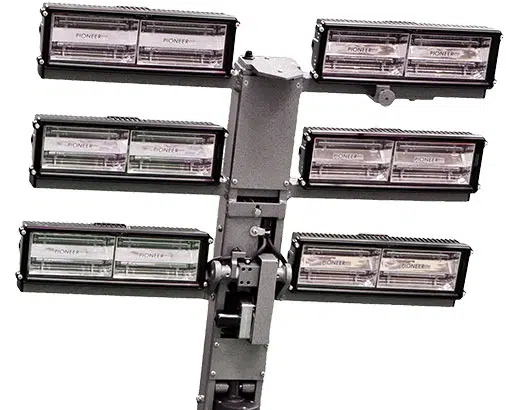

6-Head Towers

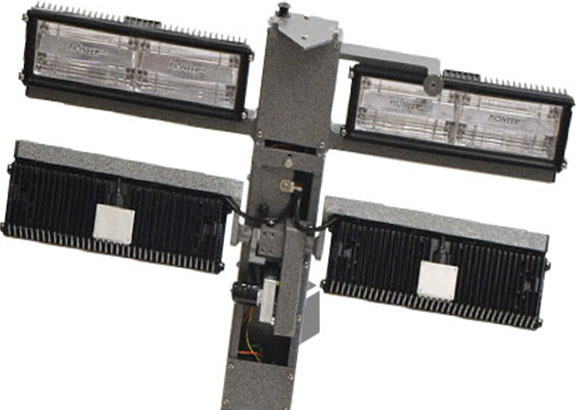

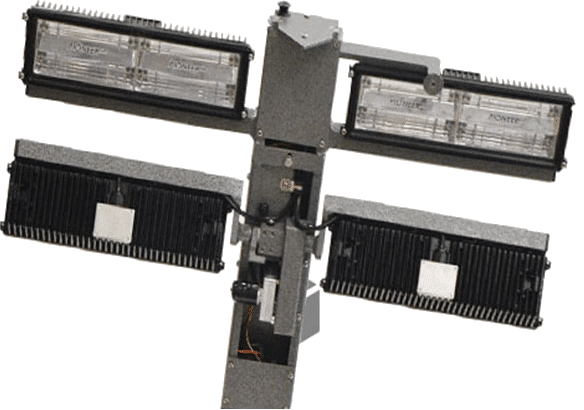

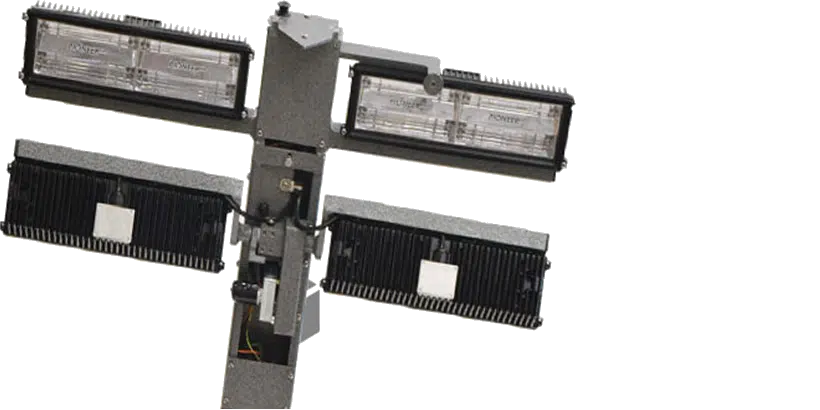

4-Head Towers

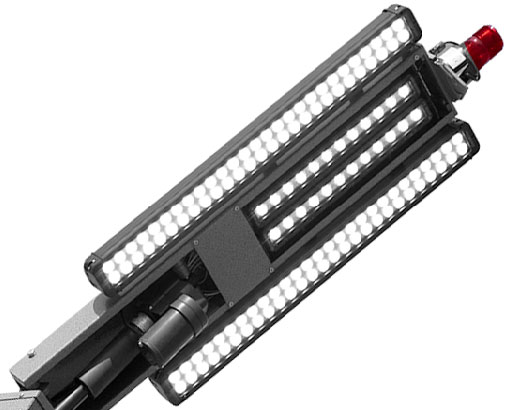

KNIGHT SLIM
VIRTUALLY DEMO THIS TOWER'S MOVEMENTS

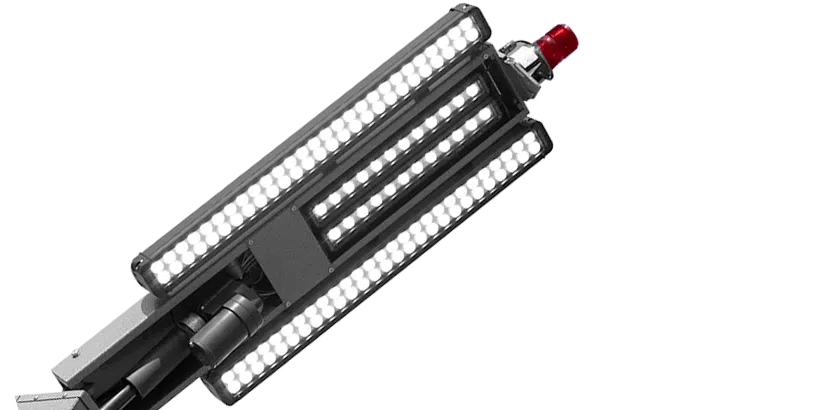

MEET COMMAND LIGHT’S SLIMMEST TOWER

The KL Series also includes the Knight Slim, Command Light’s narrowest design. This light tower stows flat at just 12” x 13” x 53”, making it perfect for tight dunnage areas or high-side aerial compartments. This compact tower packs a total output of 70,000 lumens thanks to FireTech fixtures.

VIEW DETAILS
VIEW DETAILS

KL specifications

click the chart's model number for that unit's individual spec sheet

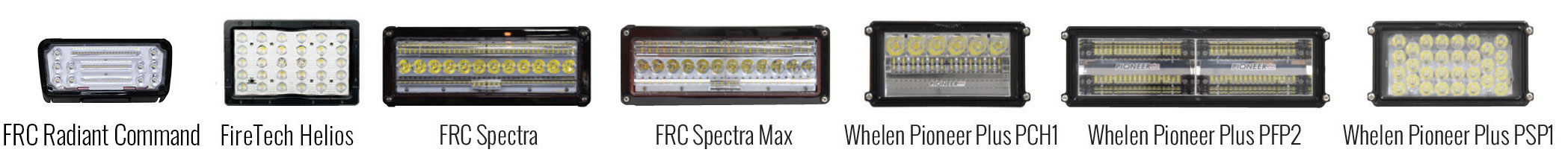

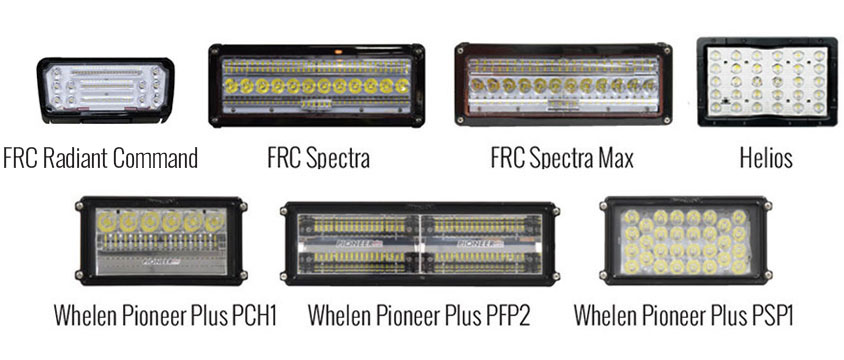

LEDs


Akron Revel SL


FireTech Helios


FRC Radiant Command


FRC Spectra Max


Whelen Pioneer
Plus™ PCH1


Whelen Pioneer
Plus™ PFP2


Whelen Pioneer
Plus™ PSP1

Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415A-CHFireTech Helios
60W		115V or 230V AC
660W		14,000
lumens		84,000
lumens		12" x 47" x 28"
305 mm x 1,195 mm x 710 mm		87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm		165 lbs
75 kg
KL415A-FRFRC Radiant Command
120W		115V or 230V AC
1,020W		17,000
lumens		102,000
lumens		12" x 47" x 29"
305 mm x 1,195 mm x 735 mm		87.5" x 52 " x 29"
2,225 mm x 1,320 mm x 735 mm		165 lbs
75 kg
KL415A-FXFRC Spectra Max
335W		115V or 230V AC
2,310W		28,000
lumens		168,000
lumens		12" x 47" x 34"
305 mm x 1,195 mm x 865 mm		87.5" x 52 " x 34"
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415A-W2Whelen Pioneer Plus PFP2
150W		115V or 230V AC
1,200W		20,442
lumens		122,652
lumens		12" x 47" x 34"
305 mm x 1,195 mm x 865 mm		87.5" x 52" x 34"
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL408A-W1Whelen Pioneer Plus PSP1
75W		115V or 230V AC
750W		8,517
lumens		51,102
lumens		12" x 47" x 23"
305 mm x 1,195 mm x 585 mm		87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm		165 lbs
75 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415D-ARAkron Revel SL
110W		12V DC – 80 amps
960W		14,000
lumens		84,000
lumens		12" x 47" x 23"
305 mm x 1,195 mm x 585 mm		87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm		165 lbs
75 kg
KL415D-CHFireTech Helios
60W		12V DC – 55 amps
660W		14,000
lumens		84,000
lumens		12" x 47" x 28"
305 mm x 1,195 mm x 710 mm		87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm		165 lbs
75 kg
KL408D-W1Whelen Pioneer Plus PCH1
75W		12V DC – 63 amps
750W		10,130
lumens		60,780
lumens		12" x 47" x 23"
305 mm x 1,195 mm x 585 mm		87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm		165 lbs
75 kg

Scroll right for full chart.

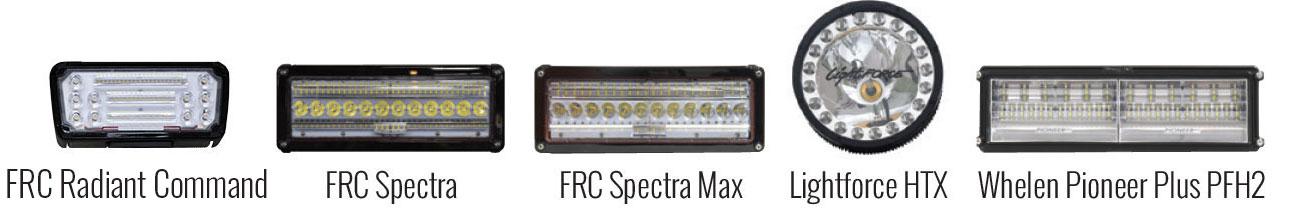

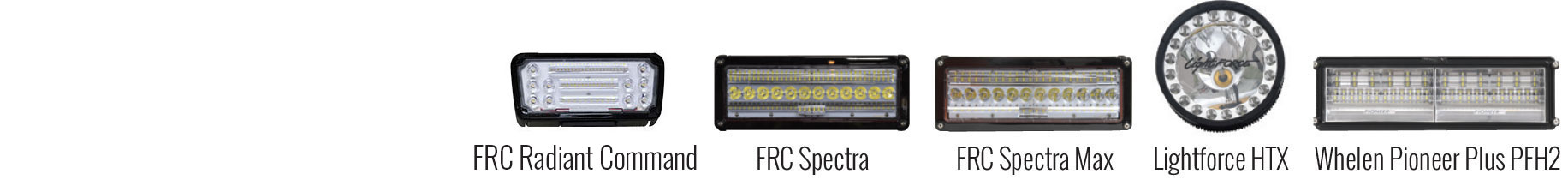

LEDs


FRC Radiant Command


FRC Spectra


FRC Spectra Max


Lightforce HTX

Whelen Pioneer
Plus PFP2


Whelen Pioneer
Plus PSP1


FRC Radiant Command


FRC Spectra Max


Lightforce HTX

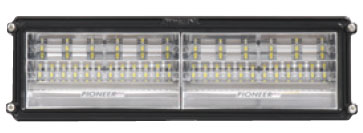

Whelen Pioneer
Plus™ PFH2

Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415A-FX4Spectra Max
335W		115V or 230V AC
1,640W		28,000
lumens		112,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415D-FRFRC Radiant Command
120W		12V DC – 65 amps
780W		17,000
lumens		68,000
lumens		12” x 47” x 29”
305 mm x 1,195 mm x 735 mm		87.5” x 52" x 29”
2,225 mm x 1,320 mm x 735 mm		165 lbs
75 kg
KL415D-FXFRC Spectra Max
230W		12V DC – 100 amps
1,220W		28,000
lumens		112,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52" x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415D-LXLightforce HTX LED/HID
150W		12V DC – 75 amps
900W		13,500
lumens		54,000
lumens		14” x 47” x 31”
355 mm x 1,195 mm x 785 mm		87.5” x 52" x 31”
2,225 mm x 1,320 mm x 785 mm		165 lbs
75 kg
KL415D-W2Whelen Pioneer Plus PFH2 - 150W12V DC – 75 amps
900W		20,261
lumens		81,044
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52" x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg

LEDs


Scroll right for full chart.

ACLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL409A-H4

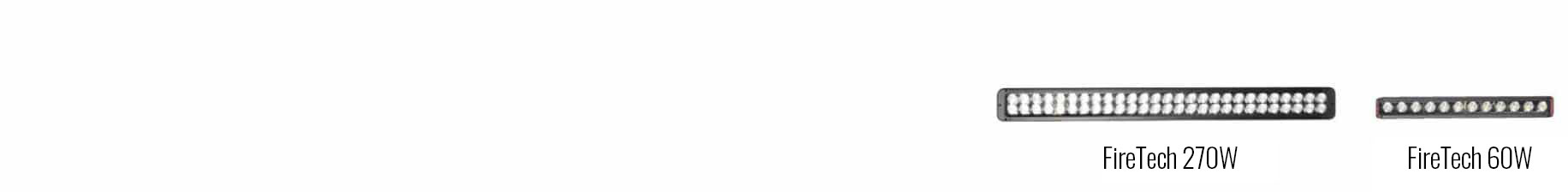

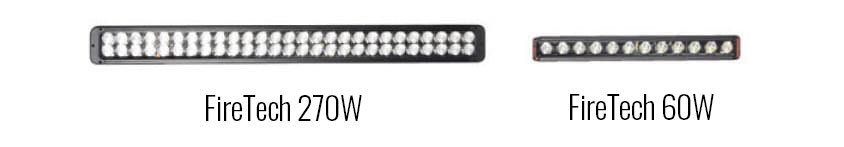

(2) FireTech – 270w
(2) FireTech – 60w		115V AC - 960w270w: 28,500
60w: 6,500		70,000
lumens		12" x 53" x 13"
305 mm x 1,345 mm x 330 mm 		87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm		165 lbs
75 kg
DCLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL409D-H4(2) FireTech – 270w
(2) FireTech – 60w		12V DC - 960w270w: 28,500
60w: 6,500		70,000
lumens		12" x 53" x 13"
305 mm x 1,345 mm x 330 mm 		87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm 		165 lbs
75 kg
