KL SERIES

KNIGHT SERIES LIGHT TOWERS WITH 7.5’ REACH



KL SERIES: MID-SIZE UNIT


Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.


6-Head Towers

4-Head Towers

KNIGHT SLIM

VIRTUALLY DEMO THIS TOWER'S MOVEMENTS


MEET COMMAND LIGHT’S SLIMMEST TOWER



The KL Series also includes the Knight Slim, Command Light’s narrowest design. This light tower stows flat at just 12” x 13” x 53”, making it perfect for tight dunnage areas or high-side aerial compartments. This compact tower packs a total output of 70,000 lumens thanks to FireTech fixtures.


VIEW DETAILS

VIEW DETAILS

KL specifications

click the chart's model number for that unit's individual spec sheet



LEDs


Akron Revel SL


FireTech Helios


FRC Radiant Command


FRC Spectra


FRC Spectra Max


Whelen Pioneer
Plus™ PCH1


Whelen Pioneer
Plus™ PFP2


Whelen Pioneer
Plus™ PSP1


Scroll right for full chart.

ACLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL415A-CHFireTech Helios
60W
115V or 230V AC
660W
14,000
lumens
84,000
lumens
12" x 47" x 28"
305 mm x 1,195 mm x 710 mm
87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm
165 lbs
75 kg
KL415A-FRFRC Radiant Command
120W
115V or 230V AC
1,020W
17,000
lumens
102,000
lumens
12" x 47" x 29"
305 mm x 1,195 mm x 735 mm
87.5" x 52 " x 29"
2,225 mm x 1,320 mm x 735 mm
165 lbs
75 kg
KL415A-FSFRC Spectra
220W
115V or 230V AC
1,620W
20,000
lumens
120,000
lumens
12" x 47" x 34"
305 mm x 1,195 mm x 865 mm
87.5" x 52 " x 34"
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
KL415A-FXFRC Spectra Max
335W
115V or 230V AC
2,310W
28,000
lumens
168,000
lumens
12" x 47" x 34"
305 mm x 1,195 mm x 865 mm
87.5" x 52 " x 34"
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
KL415A-W2Whelen Pioneer Plus PFP2
150W
115V or 230V AC
1,200W
20,442
lumens
122,652
lumens
12" x 47" x 34"
305 mm x 1,195 mm x 865 mm
87.5" x 52" x 34"
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
KL408A-W1Whelen Pioneer Plus PSP1
75W
115V or 230V AC
750W
8,517
lumens
51,102
lumens
12" x 47" x 23"
305 mm x 1,195 mm x 585 mm
87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm
165 lbs
75 kg
DCLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL415D-ARAkron Revel SL
110W
12V DC – 80 amps
960W
14,000
lumens
84,000
lumens
12" x 47" x 23"
305 mm x 1,195 mm x 585 mm
87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm
165 lbs
75 kg
KL415D-CHFireTech Helios
60W
12V DC – 55 amps
660W
14,000
lumens
84,000
lumens
12" x 47" x 28"
305 mm x 1,195 mm x 710 mm
87.5" x 52 " x 28"
2,225 mm x 1,320 mm x 710 mm
165 lbs
75 kg
KL408D-W1Whelen Pioneer Plus PCH1
75W
12V DC – 63 amps
750W
10,130
lumens
60,780
lumens
12" x 47" x 23"
305 mm x 1,195 mm x 585 mm
87.5" x 52" x 23"
2,225 mm x 1,320 mm x 585 mm
165 lbs
75 kg

QUARTZ HALOGEN


FRC Focus



LumenForm


Scroll right for full chart.

ACLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL475A-FFFRC Focus
750W
115 or 230V AC
4,800W
19,600
lumens
117,600
lumens
13” x 47” x 25”
330 mm x 1,195 mm x 635 mm
87.5” x 52 “ x 25”
2,225 mm x 1,320 mm x 635 mm
165 lbs
75 kg

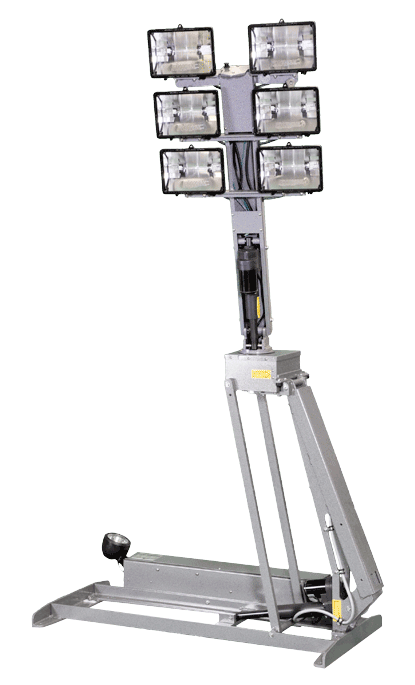

KL450A-LFLumenform
500W
115 or 230V AC
3,300W
11,100
lumens
66,600
lumens
12” x 47” x 23”
305 mm x 1,195 mm x 585 mm
87.5” x 52 “ x 23”
2,225 mm x 1,320 mm x 585 mm
165 lbs
75 kg


LEDs


FRC Radiant Command


FRC Spectra


FRC Spectra Max


Lightforce HTX

Whelen Pioneer
Plus PFP2


Whelen Pioneer
Plus PSP1


FRC Radiant Command


FRC Spectra


FRC Spectra Max


Lightforce HTX


Whelen Pioneer
Plus™ PFH2


Scroll right for full chart.

ACLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL415A-FX4Spectra-Max
335W
115V or 230V AC
1,640W
28,000
lumens
112,000
lumens
12” x 47” x 34”
305 mm x 1,195 mm x 865 mm
87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
DCLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL415D-FRFRC Radiant Command
120W
12V DC – 65 amps
780W
17,000
lumens
68,000
lumens
12” x 47” x 29”
305 mm x 1,195 mm x 735 mm
87.5” x 52" x 29”
2,225 mm x 1,320 mm x 735 mm
165 lbs
75 kg
KL415D-FSFRC Spectra
220W
12V DC – 98 amps
1,180W
20,000
lumens
80,000
lumens
12” x 47” x 34”
305 mm x 1,195 mm x 865 mm
87.5” x 52" x 34”
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
KL415D-FXFRC Spectra Max
230W
12V DC – 100 amps
1,220W
28,000
lumens
112,000
lumens
12” x 47” x 34”
305 mm x 1,195 mm x 865 mm
87.5” x 52" x 34”
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg
KL415D-LXLightforce HTX LED/HID
150W
12V DC – 75 amps
900W
13,500
lumens
54,000
lumens
14” x 47” x 31”
355 mm x 1,195 mm x 785 mm
87.5” x 52" x 31”
2,225 mm x 1,320 mm x 785 mm
165 lbs
75 kg
KL415D-W2Whelen Pioneer Plus PFH2 - 150W12V DC – 75 amps
900W
20,261
lumens
81,044
lumens
12” x 47” x 34”
305 mm x 1,195 mm x 865 mm
87.5” x 52" x 34”
2,225 mm x 1,320 mm x 865 mm
165 lbs
75 kg


LEDs


Scroll right for full chart.

ACLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL409A-H4
(2) FireTech – 270w
(2) FireTech – 60w
115V AC - 960w270w: 28,500
60w: 6,500
70,000
lumens
12" x 53" x 13"
305 mm x 1,345 mm x 330 mm
87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm
165 lbs
75 kg
DCLightingPower
Requirements
Output
(Per Light)
Total
Output
H×W×D
(Nested)
H×W×D
(Upright)
Weight
KL409D-H4(2) FireTech – 270w
(2) FireTech – 60w
12V DC - 960w270w: 28,500
60w: 6,500
70,000
lumens
12" x 53" x 13"
305 mm x 1,345 mm x 330 mm
87.5" x 53" x 13"
2,225 mm x 1,345 mm x 330 mm
165 lbs
75 kg
