43” OR 63” TELESCOPING POLE LIGHTS MOUNTED TO FIT ANY APPARATUS
Spec’ing PUSH pole lights on your new fire apparatus?
Looking for high-lumen lighting for your work truck? Command Light’s all-new 43” or 63” telescoping work lights mount to any rig for 63” or 100” of light respectively, when fully extended. These work lights eliminate the harsh glare of typical side-mounted LEDs thanks to this elevated, directional lighting.
Plus, you get to choose the brightness with your choice of AC or DC LED. This telescoping light pole can be spec’ed with Akron, FireTech, FRC or Whelen fixture for up to 40,884 lumens of light (depending on LED). Meanwhile, the anodized black pole provides a modern sleek look, featuring an optional bottom cradle with elevated warning sensor.

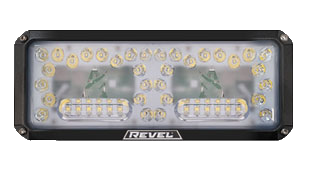

TOP OFF YOUR POLE LIGHT WITH YOUR FAVORITE LED HEAD
AC LED OPTIONS
DC LED OPTIONS
A COMPACT DESIGN FOR THE ROAD,
ELEVATED
LIGHT FOR EVERY SCENE
CHOOSE YOUR TELESCOPING POLE LIGHT HEIGHT, POWER TYPE AND LED HEAD

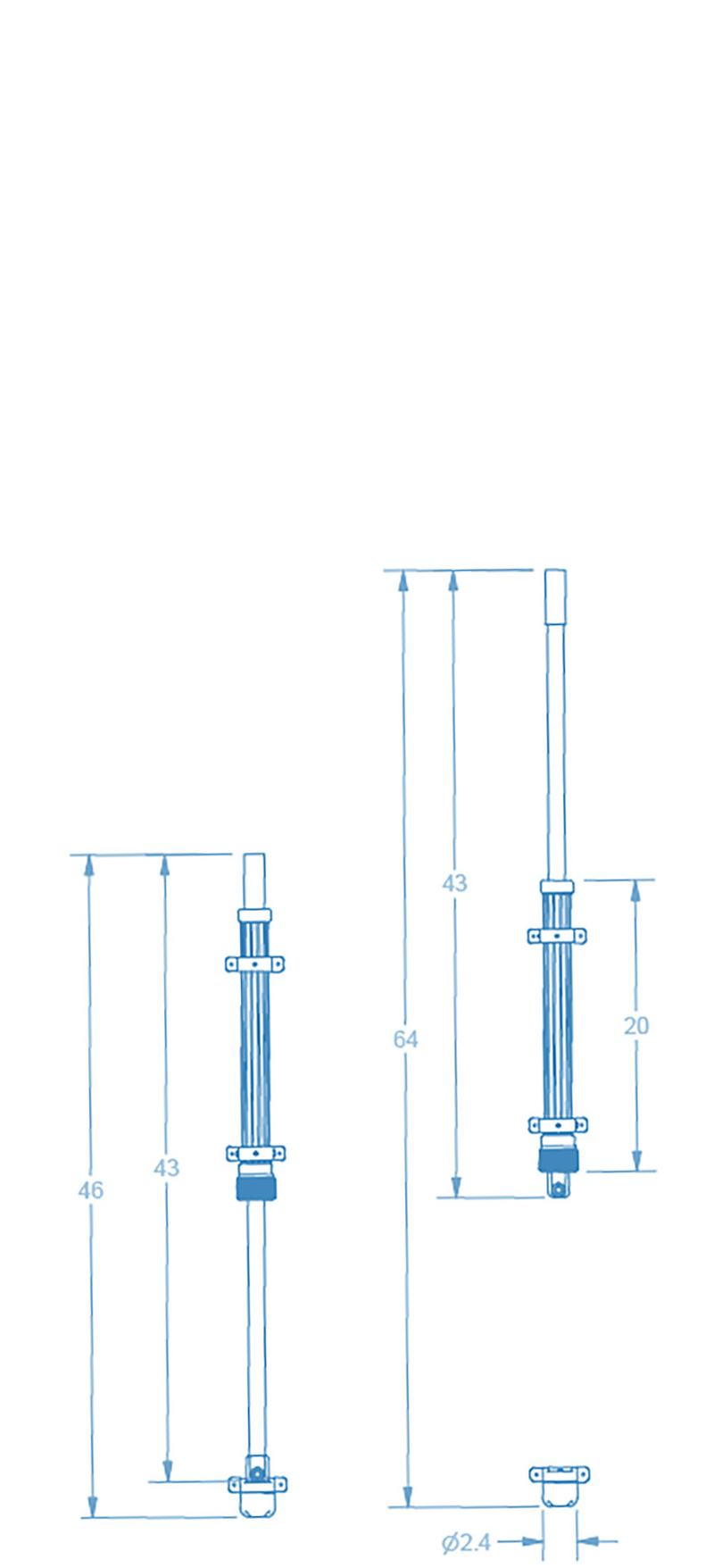

MODEL PS4 = 43" with 61" EXT
PS43D-HE (LEFT), PS63D-CH (RIGHT)
MODEL PS6 = 63" with 100" EXT
Scroll to see full chart.
| DC | LIGHTING | POWER REQ. | WT.* | TOTAL OUTPUT |
|
|---|---|---|---|---|---|
| PSX3D-AR |  | Akron Revel SL LED | 12V DC 110W | 12 lbs 5.5 kg | 14,000 lumens |
| PSX3D-AX |  | Akron Revel XL LED | 12V DC 220W | 14 lbs 6.5kg | 28,000 lumens |
| PSX3D-CH |  | FireTech Helios | 12V DC 60W | 12 lbs 5.5kg | 14,000 lumens |
| PSX3D-HE |  | FireTech Guardian Elite | 12V DC 120W | 13 lbs 6 kg | 14,000 lumens |
| PSX3D-FR |  | FRC Radiant Command | 12V DC 120W | 13 lbs 6 kg | 17,000 lumens |
| PSX3D-W1 |  | Whelen PCH1 | 12V DC 75W | 10 lbs 4.5 kg | 10,130 lumens |
| PSX3D-W2 |  | Whelen PFH2 | 12V DC 150W | 11 lbs 5 kg | 20,261 lumens |
PSX = POLE HEIGHT
* Add 1 lb (.45 kg) for 63” pole light.
Scroll to see full chart.
| AC | LIGHTING | POWER REQ. | WT.* | TOTAL OUTPUT |
|
|---|---|---|---|---|---|
| PSX3A-CH | | FireTech Helios | 115/230V AC 60W | 12 lbs 5.5 kg | 14,000 lumens |
| PSX3A-FR |  | FRC Radiant Command | 115/230V AC 120W | 13 lbs 6kg | 8,517 lumens |
| PSX3A-W1 |  | Whelen PSP1 | 115V AC 75W | 10 lbs 4.5kg | 8,517 lumens |
| PSX3A-W2 |  | Whelen PFP2 | 115V AC 150W | 11 lbs 5 kg | 20,442 lumens |
| PSX3A-W4 |  | Whelen PFP4 | 115V AC 150W | 14 lbs 6.5 kg | 40,884 lumens |
* Add 1 lb (.45 kg) for 63” pole light.
| ACCESSORIES | PRODUCT | DESCRIPTION |
|---|---|---|
| PS-EW |  | Bottom Cradle with Elevated Warning Sensor |

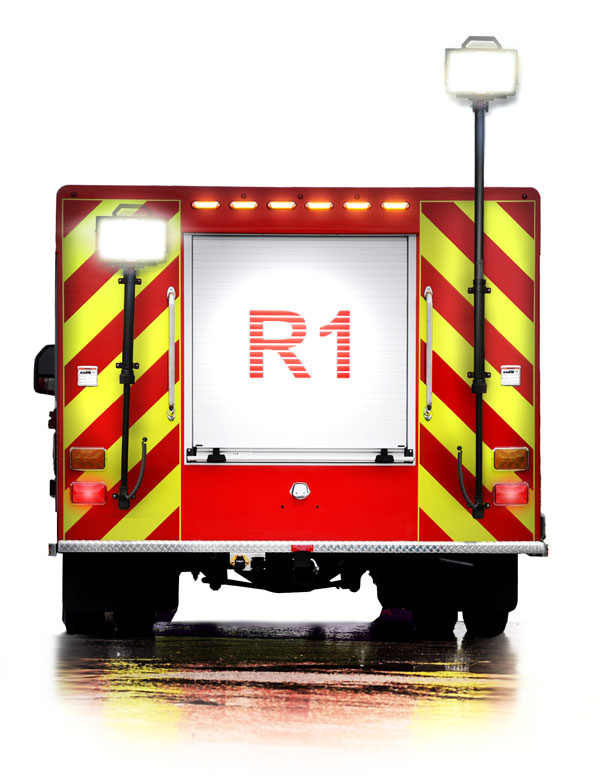

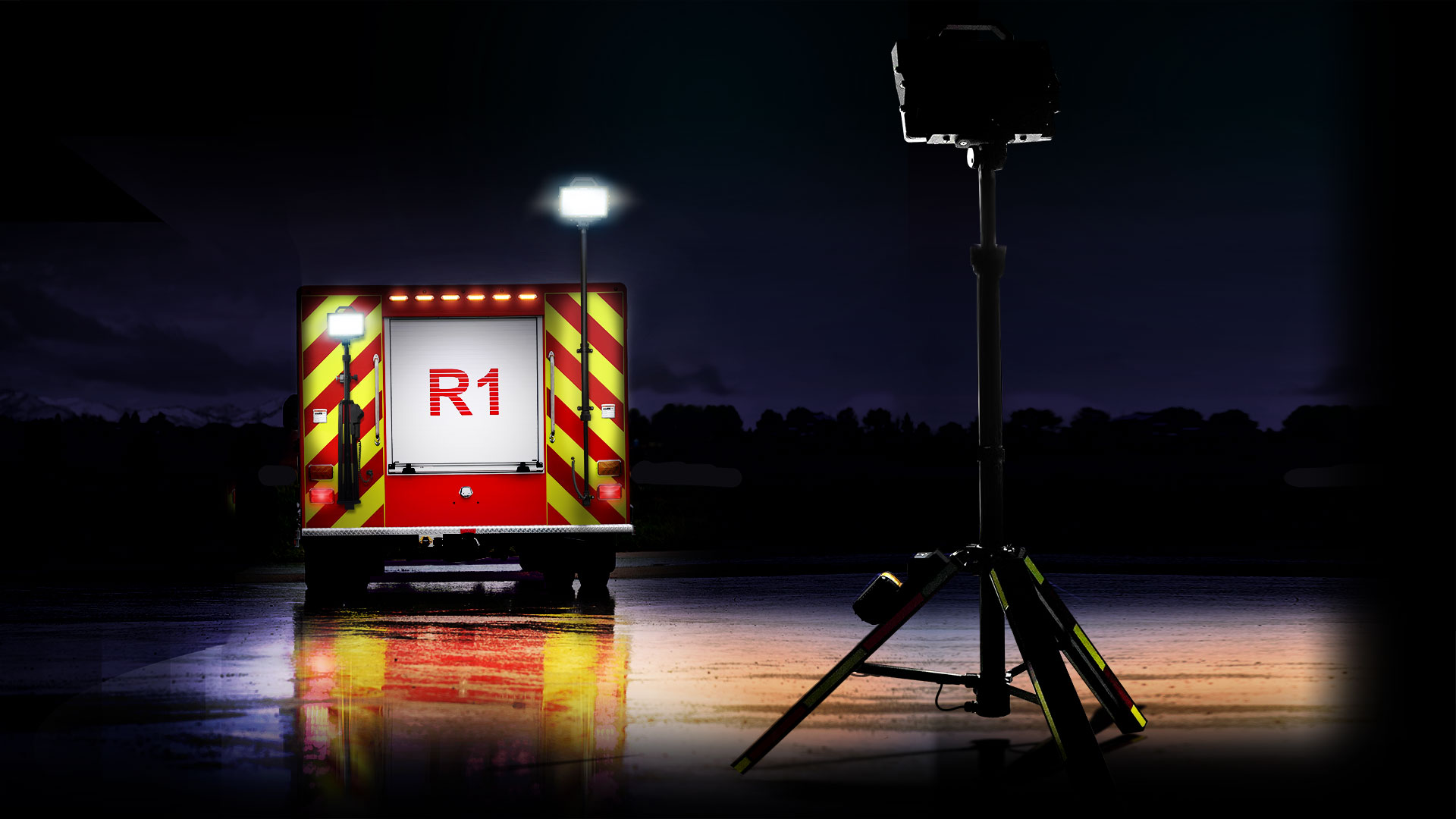

3-IN-1 APPARATUS SCENE LIGHTING
TURN YOUR TRIPOD, INTO A POLE LIGHT, BACK INTO A TRIPOD
Mount our Trident Tripod to your apparatus for the most versatile scene lighting on the market. Raise it, rotate it, tilt it or move it to illuminate any scene from any angle.
This foldable battery-powered tripod is designed to work with your department's current battery-powered rescue-tool platform, plus run off 12 VDC truck power, with optional shore power addition.
