ELEVATE YOUR TOW TRUCK LED LIGHTS

Tow truck LED lights are expensive, so why not make the most of them? Most tow companies mount LEDs to the corners of their truck, wasting valuable light. (With corner-mounted LEDs, only HALF of the light output is directed at the scene and creates blinding eye-level glare.) Instead, consider a light tower that allows you to cluster ALL of your fixtures and direct light, delivering the ultimate solution in truck work lights.

Meet the Command Light tower lineup:


Kl SERIES

MID–SIZE HEIGHT

Command Light’s mid-size Knight Series delivers a reach of nearly 7.5' from its base.

BROWSE SERIES

Sl SERIES

SHORTEST TOWER

The Shadow Series offers a reach of 4.5',
or up to 6.5' with optional arm.

BROWSE SERIES

C-lITE SERIES

COMPACT LIGHTING

Great for command units, this compact light offers rotation and 120 degrees of tilt.

BROWSE SERIES

THE KNIGHT SERIES

Command Light’s mid-size tower, delivers a reach of nearly 7.5 feet from its base. Like the CL Series, these units are manufactured using aircraft-grade aluminum but are roughly half the weight of their taller counterpart, making these towers ideal for apparatus with limited space. The series also includes the KL Slim, a narrow tower with a small 53” x 13” footprint, perfect for tight dunnage areas or high-side aerial compartments.


Scroll right for full chart.

LEDsLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415D-FRFRC Radiant Command
120W		12V DC – 98 amps
780W		17,000
lumens		68,000
lumens		12” x 47” x 30”
305 mm x 1,195 mm x 760 mm		87.5” x 52" x 30”
2,225 mm x 1,320 mm x 760 mm		165 lbs
75 kg
KL415D-FSFRC Spectra
220W		12V DC – 84 amps
1,180W		20,000
lumens		80,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415D-FXFRC Spectra Max
230W		12V DC – 100 amps
1,220W		28,000
lumens		112,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415D-LXLightforce HTX LED/HID
150W		12V DC – 60 amps
900W		13,500
lumens		54,000
lumens		14” x 47” x 31”
355 mm x 1,195 mm x 785 mm		87.5” x 52 “ x 31”
2,225 mm x 1,320 mm x 785 mm		165 lbs
75 kg
KL415D-W2Whelen Pioneer Plus PFH2 - 150W12V DC – 63 amps
900W		20,261
lumens		81,044
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg

Scroll right for full chart.

LEDsLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL415D-FRFRC Radiant Command
120W		12V DC – 98 amps
780W		17,000
lumens		68,000
lumens		12” x 47” x 30”
305 mm x 1,195 mm x 760 mm		87.5” x 52" x 30”
2,225 mm x 1,320 mm x 760 mm		165 lbs
75 kg
KL415D-FSFRC Spectra
220W		12V DC – 84 amps
1,180W		20,000
lumens		80,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415D-FXFRC Spectra Max
230W		12V DC – 100 amps
1,220W		28,000
lumens		112,000
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg
KL415D-LXLightforce HTX LED/HID
150W		12V DC – 60 amps
900W		13,500
lumens		54,000
lumens		14” x 47” x 31”
355 mm x 1,195 mm x 785 mm		87.5” x 52 “ x 31”
2,225 mm x 1,320 mm x 785 mm		165 lbs
75 kg
KL415D-W2Whelen Pioneer Plus PFH2 - 150W12V DC – 63 amps
900W		20,261
lumens		81,044
lumens		12” x 47” x 34”
305 mm x 1,195 mm x 865 mm		87.5” x 52 “ x 34”
2,225 mm x 1,320 mm x 865 mm		165 lbs
75 kg

THE KNIGHT SLIM delivers the Knight Series smallest footprint, stowing flat at just 12" x 13" x 53" thanks to this narrow design, ideal for smaller to mid-size apparatus, or larger trucks with limited space. This compact tower packs a total output of 70,000 lumens thanks to HiViz fixtures.


* On this DC tower, amperage only allows for strobe OR camera option.


Scroll right for full chart.

LEDsLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
KL409A-H4(2) HiViz – 270w
(2) HiViz – 60w		12V DC - 960w270w: 28,500
60w: 6,500		70,000
lumens		12" x 13" x 53"
305 mm x 330 mm x 1,345 mm		87.5" x 13" x 53"
2,225 mm x 330 mm x 1,345 mm		165 lbs
75 kg

THE SHADOW SERIES

Command Light’s most compact units when space is at a premium. These units have a reach of more than 4 feet from its base (or 10' with optional 80" arm), weigh approximately 65 lbs, and are still manufactured using aircraft-grade aluminum alloy for strength. Thanks to this compact size, these units can fit on SUVs, vans and pickup trucks, all the while featuring 355° of rotation.


Scroll right for full chart.

LEDsLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL442A-CHHelios
60W		12V DC + 115V or 230V AC
420W		14,000
lumens		56,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
SL442A–FSFRC Spectra
220W		12V DC + 115V or 230V AC
1,060W		20,000
lumens		80,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
SL442A–FXFRC Spectra Max
335W		12V DC + 115V or 230V AC
1,520W		28,000
lumens		112,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34”
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
SL442A–W1Whelen PSP1
75W		12V DC + 115V or 230V AC
480W		8,517
lumens		34,068
lumens		8” x 54” x 22”
205 mm x 1,375 mm x 560 mm		55” x 36" x 22"
1,395 mm x 915 mm x 560 mm		75 lbs
35 kg
SL442A–W2Whelen Pioneer Plus PFP2
150W		12V DC + 115V or 230V AC
780W		20,442
lumens		81,768
lumens		8" x 54" x 33"
205 mm x 1,375 mm x 835 mm		55" x 36" x 33"
1,395 mm x 915 mm x 835 mm		75 lbs
35 kg
SL442A–W2Helios
60W		12V DC – 35 amps
420W		14,000
lumens		56,000
lumens		8" x 54" x 28"
205 mm x 1,375 mm x 710 mm		55" x 36 " x 28"
1,395 mm x 915 mm x 710 mm		75 lbs
35 kg
SL442D–FRFRC Radiant Eco
160W		12V DC – 98 amps
780W		17,000
lumens
68,000
lumens		8” x 54” x 30”
205 mm x 1,375 mm x 760 mm		55” x 36” x 30”
1,395 mm x 915 mm x 760 mm		75 lbs
35 kg
SL442D–FSFRC Spectra
230W		12V DC – 90 amps
1,100W		20,000
lumens		56,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
SL442D–FXFRC Spectra Max
230W		12V DC - 92 amps
1,100W		28,000
lumens		112,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36" x 34"
1,395 mm x 915 mm x 865 mm		75 lbs
35 kg
SL442D-LXLightforce HTX LED/HID
150W		12V DC – 60 amps
780W		13,500
lumens		54,000
lumens		8" x 56" x 23"
205 mm x 1,420 mm x 585 mm		57" x 46" x 23"
1,450 mm x 1,1670 mm x 585 mm		75 lbs
35 kg
SL442D–W1Whelen Pioneer Plus PCH1
75W		12V DC* – 70 amps
480W		10,130
lumens		40,520
lumens		8" x 54" x 22"
205 mm x 1,375 mm x 560 mm		55" x 36" x 22"
1,395 mm x 915 mm x 560 mm		75 lbs
35 kg
SL442D–W2Whelen Pioneer Plus PFH2
150W		12V DC* – 70 amps
780W		20,261
lumens		81,044
lumens		8" x 54" x 33"
205 mm x 1,375 mm x 835 mm		55" x 36" x 33"
1,395 mm x 915 mm x 835 mm		75 lbs
35 kg

Scroll right for full chart.

QUARTZ
HALOGEN		LightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL447A–FFFRC Focus
750w		12V DC + 115V or 230V AC
3,180w		19,600
lumens		78,400
lumens		8” x 54” x 23”
205 mm x 1,375 mm x 585 mm		49.5" x 52" x 23"
1,260 mm x 1,320 mm x 585		70 lbs
32 kg
SL445A–LFLumenform
500w		12V DC + 115V or 230V AC
2,180w		11,100
lumens		44,400
lumens		8" x 54" x 22"
205 mm x 1,375 mm x 560 mm		55" x 36" x 22"
1,395 mm x 915 mm x 560 mm		70 lbs
32 kg

Scroll right for full chart.

LEDSLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SL422A-CHHelios
60w		12V DC + 115V or 230V AC
300w		14,000
lumens		28,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36 " x 34"
1,395 mm x 915 mm x 865 mm		70 lbs
32 kg
SL422A–FSFRC Spectra
220w		12V DC + 115V or 230V AC
620w		20,000
lumens		40,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36 " x 34"
1,395 mm x 915 mm x 865 m		70 lbs
32 kg
SL422A–FXFRC Spectra Max
335w		12V DC + 115V or 230V AC
850w		28,000
lumens		56,000
lumens		8" x 54" x 34"
205 mm x 1,375 mm x 865 mm		55" x 36 " x 34"
1,395 mm x 915 mm x 865 mm		70 lbs
32 kg
SL422A–W2Whelen Pioneer Plus PFP2
150w		12V DC + 115V or 230V AC
480w		20,442
lumens		40,884
lumens		8” x 54” x 33”
205 mm x 1,375 mm x 840 mm		55” x 36 “ x 33”
1,395 mm x 915 mm x 840 mm		70 lbs
32 kg
SL422D–FEFRC Evolution
160w		12V DC – 35 amps
500w		20,000 lumens40,000 lumens8” x 54” x 32”
205 mm x 1,375 mm x 815 mm		55” x 36 “ x 32”
1,395 mm x 915 mm x 815 mm		65 lbs
30 kg
SL422D–FSFRC Spectra
230w		12V DC – 42 amps
620w		20,000 lumens40,000 lumens8” x 54” x 34”
205 mm x 1,375 mm x 865 mm		55” x 36 “ x 34”
1,395 mm x 915 mm x 865 mm		65 lbs
30 kg
SL422D–FXFRC Spectra Max
335w		115V or 230V AC
670w		28,000 lumens56,000 lumens8" x 54" x 34"
205mm x 1,375 mm x 865 mm		55" x 36 " x 34"
1,395 mm x 915 mm x 865 mm		65 lbs
30 kg
SL422D–W1Whelen Pioneer Plus PCH1
75w		12V DC* – 20 amps
330w		10,130 lumens20,260 lumens8” x 54” x 22”
205 mm x 1,375 mm x 560		55” x 36 “ x 22”
1,395 mm x 915 mm x 560 mm		65 lbs
30 kg
SL422D–W2Whelen Pioneer Plus PFH2
150w		12V DC* – 35 amps
480w		20,261 lumens40,522 lumens8” x 54” x 33”
205 mm x 1,375 mm x 840 mm		55” x 36 “ x 33”
1,395 mm x 915 mm x 840 mm		65 lbs
30 kg

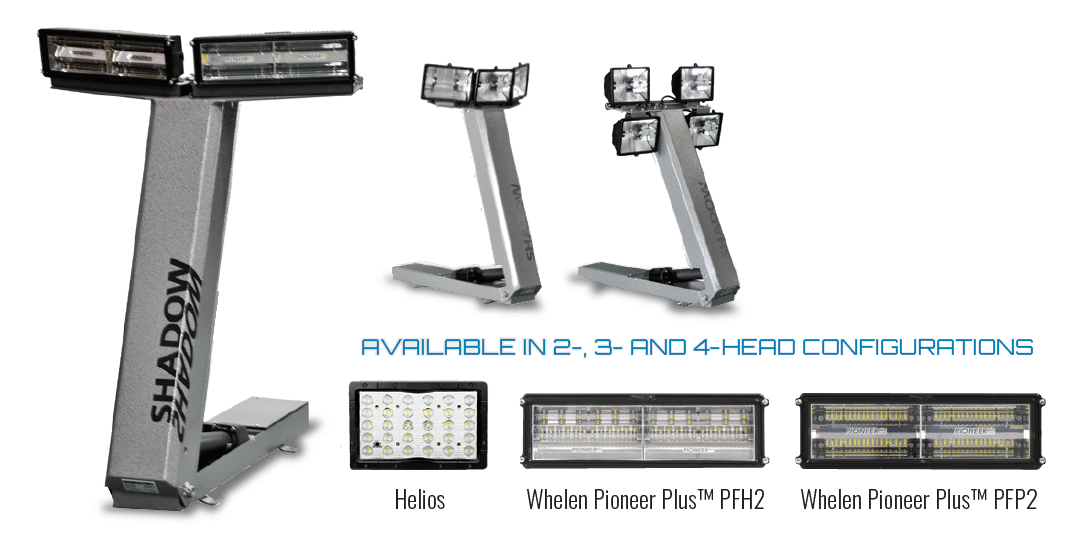

THE STRAIGHT SHADOW
is Command Light’s most economical solution in maintaining efficient scene lighting. Featuring only elevated capabilities (and not rotation), this unit offers a 3.5' reach from its base. The Straight Shadow can also be easily modified to elevate cameras and antennas.


Scroll right for full chart.

LEDSLightingPower
Requirements		Output
(Per Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SS322A-CH(2) Helios
60w		12V DC + 115V or 230V AC
240w		14,000
lumens		28,000
lumens		9" x 42" x 30"
230 mm x 1,065 mm x 760 mm		42.5" x 45 " x 30"
1,080 mm x 1,145 mm x 760 mm		45 lbs
20 kg
SS322A-W2(2) Whelen PFP2
150w		12V DC + 115V or 230V AC
400w		20,442
lumens		40,884
lumens		9" x 42" x 30"
230 mm x 1,065 mm x 760 mm		42.5" x 45 " x30"
1,080 mm x 1,145 mm x 760 mm		45 lbs
20 kg
SS322D-CH(2) Helios
60w		12V DC – 20 amps
240w		14,000
lumens		28,000
lumens		9" x 42" x 30"
230 mm x 1,065 mm x 760 mm		43" x 45" x 30"
1,095 mm x 1,145 mm x 760 mm		45 lbs
20 kg
SS322D-W2(2) Whelen Pioneer Plus
PFH2 - 150w		12V DC – 34 amps
420w		20,261
lumens		40,522
lumens		8" x 42" x 30"
205 mm x 1,065 mm x 760 mm		43" x 45" x 30”
1,095 mm x 1,145 mm x 760 mm		45 lbs
20 kg

Scroll right for full chart.

QUARTZ
HALOGEN		LightingPower
Requirements		Output
(Per
Light)		Total
Output		H×W×D
(Nested)		H×W×D
(Upright)		Weight
SS335A-LF(3) Lumenform
500w		12V DC + 115V or 230V AC
1,620w		11,100
lumens		33,300
lumens		9" x 42" x 26"
230 mm x 1,065 mm x 660 mm		42.5" x 44.75 " x 26"
1,080 mm x 1,135 mm x 660 mm		40 lbs
18 kg
SS345A-LF(4) Lumenform
500w		12V DC + 115V or 230V AC
2,120w		11,100
lumens		44,400
lumens		8" x 42" x 25"
205 mm x 1,065 mm x 635 mm		44" x 44.75" x 25"
1,120 mm x 1,135 mm x 635 mm		45 lbs
20 kg

COMPACT LIGHTING

THE C-LITE is a versatile, compact unit that boasts a LED spotlight/floodlight combo, creating a concentrated beam that allows the operator to illuminate areas not typically reached by fixed lights. The C-Lite has the ability to tilt up to 120° and even rotate with an optional platform. This unit’s small, lightweight design can be mounted vertically or horizontally, perfect for aerial tip illumination, command vehicle lighting and utility industry applications, like farming, ranching, towing, maintenance and more.


Scroll right for full chart.

DCLightingPower
Requirements		Output
(Per
Light)		Total OutputH×W×D
(Nested)		H×W×D
(Upright)		WEIGHT
CD113D-CH
(1) FireTech Helios
60W		12V DC - 12 amps
140W		14,000 lumens14,000
lumens		9" x 14" x 19"
230 mm x 355 mm x 485 mm		21" x 14" x 19"
535 mm x 355 mm x 485 mm		35 lbs
16 kg
CD113D-FR
(1) FRC Radiant Command
120W		12V DC - 17 amps
200W		17,000
lumens		17,000
lumens		9" x 12" x 19"
230 mm x 305 mm x 485 mm		21" x 12" x 19"
535 mm x 305 mm x 485 mm		30 lbs
14 kg
CD113D-FS
(1) FRC Spectra
220W		12V DC - 25 amps
300W		20,000
lumens		20,000
lumens		9" x 14" x 19"
230 mm x 355 mm x 485 mm		21" x 14" x 19"
535 mm x 355 mm x 485 mm		30 lbs
14 kg
CD128D-FN
(2) FRC Mini Spectra
130W		12V DC - 29 amps
340W		14,000
lumens		28,000
lumens		9" x 26" x 19"
230 mm x 660 mm x 485 mm		21" x 26" x 19"
535 mm x 660 mm x 485 mm		30 lbs
14 kg
CD127D-W1
(2) Whelen Pioneer Plus
PCH1 75W		12V DC - 20 amps
230W		10,130
lumens		20,260
lumens		9" x 19" x 19"
230 mm x 485 mm x 485 mm		21" x 19" x 19"
535 mm x 480 mm x 485 mm		30 lbs
14 kg
CONTACT US
